Corten steel structural frames are engineered for outdoor installations where ordinary steel would need constant protection. Instead of paint or galvanizing, the material develops a dense, self-limiting oxide layer that guards the section while load is being carried. For pergolas, shade canopies, equipment enclosures, boardwalks and observation decks, the frame both supports and decorates, which is why architects and structural engineers specify weathering steel when the building envelope will stay exposed for decades.
Key Takeaways
Corten frames deliver high tensile strength with no painting, coating or routine maintenance.
The stable patina forms over 6-12 months and slows corrosion to a negligible rate outdoors.
Frames are custom-fabricated in common beam and column profiles to match project geometry.
Standard grades such as ASTM A588 and GB/T 4171 Q355NH support design verification.
Load-Bearing Performance in Exposed Conditions
Structural frames must resist wind, snow and seismic loads for the full service life of the installation. Corten steel achieves this with minimum yield strengths in the 345-460 MPa range depending on grade, which allows slimmer sections than ordinary carbon steel at the same design load. Because the protective layer is part of the steel itself, the section modulus is not reduced by coating loss, and no allowance for future repainting is needed in the maintenance budget.
Self-Protecting Patina Eliminates Maintenance
The weathering mechanism depends on small alloy additions of copper, chromium and nickel. When moisture and oxygen contact the surface, they form a compact rust layer that blocks further penetration, unlike the loose flaking rust of plain carbon steel. The patina stabilizes in roughly 6-12 months depending on climate, after which corrosion proceeds at a very low rate. For facility managers the practical result is zero painting cycles, zero coating inspection and no maintenance access disruption over the life of the structure.
Natural Aesthetic That Complements Outdoor Spaces

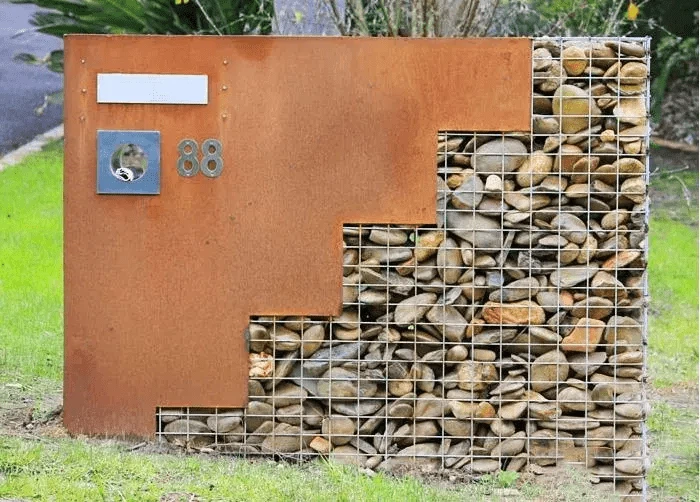

The warm, earthy tones of the aged surface blend with landscape materials and concrete, which is why corten frames are used in public plazas, parks and residential gardens. The appearance can be guided: accelerated patination treatments produce an even color in weeks, while natural weathering gives a more organic finish. Either way the frame becomes a design feature rather than a utilitarian element to be concealed.
Custom Fabrication and Structural Detailing
Corten frames are supplied in a wide range of beam sizes, column profiles and connection details, and can be laser-cut, bent and welded to suit complex geometries. Exposed bolted connections should use weathering-grade fasteners, and weld filler metal should match the base metal composition so the joint weathers at the same rate. For coastal or high-salt environments, designers specify tighter edge radii and additional patina sealing on welds.
Standards and Specification Guidance
Specify the grade and dimension standard together with the design code. Common grades include ASTM A588 Grade A/B, ASTM A606 Type 4 for sheet, EN 10025-5 S355J2WP and GB/T 4171 Q355NH, Q415NH and Q460NH. State the required yield strength, plate or section thickness, surface condition and any accelerated patination requirement so the fabricator can quote accurately and issue mill certificates.
Frequently Asked Questions
Q: What yield strength do corten structural frames provide?
Minimum yield strengths of 345-460 MPa depending on grade, which allows slimmer sections than ordinary carbon steel at the same design load.
Q: How long does the patina take to stabilise on a frame?
The stable patina forms over roughly 6-12 months, after which corrosion slows to a negligible rate in outdoor exposure.
Q: Does a corten frame need painting or galvanising?
No. The protective layer is part of the steel itself, so there is no painting, coating or routine maintenance, and no allowance for future repainting is needed in the maintenance budget.
Q: Is the section modulus reduced as the surface oxidises?
No. Because the protective layer is inherent to the material, the section modulus is not reduced by coating loss.
Q: Which profiles can be fabricated?
Frames are custom-fabricated in common beam and column profiles to match project geometry, for pergolas, shade canopies, equipment enclosures, boardwalks and observation decks.
Q: Which standards support design verification?
ASTM A588 and GB/T 4171 Q355NH are commonly specified, and mill test certificates should confirm grade, yield strength, chemical composition and standard compliance for structural use.
