Overview

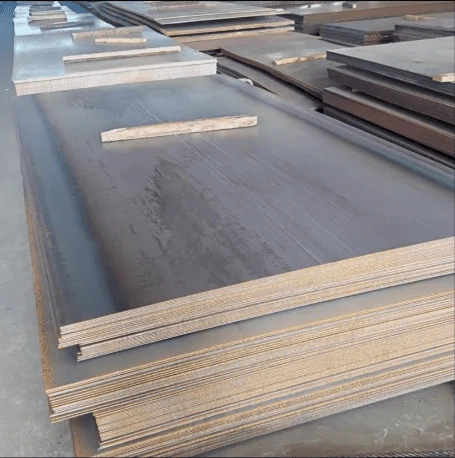

The S355J0WP Corten Plate (S355J0WP weathering steel plate) is a high-strength, hot-rolled structural steel (EN 10025-5) with improved atmospheric corrosion resistance.
Its main alloying elements are chromium (Cr), nickel (Ni), and copper (Cu), with added phosphorus (P), which gives s355j0wp corten excellent self-protecting capabilities.
When exposed to the atmosphere, the S355J0WP Corten Plate gradually develops a dense and stable protective rust layer (patina) that effectively shields the inner steel from further exposure, significantly enhancing its corrosion resistance.
This property minimizes or even eliminates the need for painting or external protection, making the S355J0WP weathering steel plate ideal for long-term outdoor applications with minimal maintenance requirements.
Specifications
Thickness: 4mm - 150mm
Width: 1000mm - 4000mm
Length: 4000mm - 12000mm
Delivery Condition: Hot Rolled, Quenched & Tempered (QT)
Customized cutting, bending, and welding services available upon request.
Chemical Composition (Heat Analysis, Max %)
|
Element |
C |
Si |
Mn |
P |
S |
N |
Cr |
Cu |
|
Content |
≤0.12 |
≤0.75 |
≤1.00 |
0.06-0.15 |
≤0.035 |
≤0.009 |
0.30-1.25 |
0.25-0.55 |
Mechanical Properties
|
Grade |
Min. Yield Strength (MPa) |
Tensile Strength (MPa) |
Elongation (%) |
|
S355J0WP |
≥355 (t ≤ 16mm) |
510-680 |
≥16 |
|
≥345 (16mm < t ≤ 40mm) |
470-630 |
≥17 |
|
|
- |
- |
≥18 (t > 40mm) |
Equivalent Grades
|
Region/Standard |
Grade |
|
EN (EU) |
S355J0WP |
|
ASTM (USA) |
Gr.1 |
|
DIN/WNr (Germany) |
9CrNiCuP324 |
|
JIS (Japan) |
SPA-H |
|
AFNOR (France) |
E36WA3 |
|
BS (UK) |
WR50A / WR50B / WR50C |
|
GB (China) |
09CuPCrNi-A |
|
Others |
Fe510C1KI / Fe355W-1A etc. |
Features
Excellent Atmospheric Corrosion Resistance – S355J0WP Corten Plate forms a protective patina layer that prevents further corrosion.
High Strength – Minimum yield strength up to 355 MPa, ideal for structural applications.
Low Maintenance – S355J0WP weathering steel plate requires little or no painting, reducing long-term maintenance costs.
Good Weldability and Formability – Suitable for a variety of fabrication processes.
Superior Seawater Resistance – s355j0wp corten performs well even in flowing seawater environments.
Applications
Architectural façades and curtain walls
Bridges and structural steelworks
Shipping containers
Outdoor sculptures and landscape features
Railway vehicles and marine equipment
Industrial tanks and other exposed structural components
Ordering & Inquiry
As a leading global supplier and exporter of S355J0WP Corten Plate and S355J0WP weathering steel plate, Gnee Steel offers a wide range of s355j0wp corten products in stock.
We provide complete technical data, competitive pricing, and reliable export services.
Feel free to contact us for the latest S355J0WP Corten Plate prices, stock availability, and technical support.
