Products Description

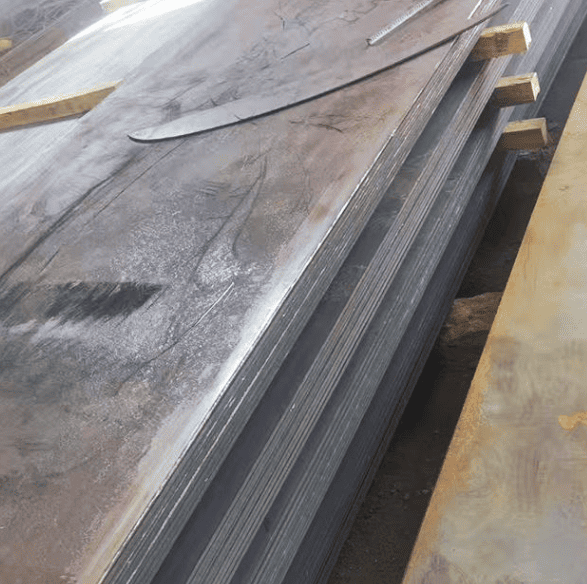

S355K2G2W weathering steel plate is a general-purpose structural steel with a minimum yield strength of 355 N/mm², a tensile strength ranging from 470 to 630 N/mm², and an elongation of ≥20%.
It maintains excellent impact toughness at low temperatures (-20°C impact energy ≥27 J). By incorporating trace alloying elements (e.g., Cu, P, Cr, Ni) into ordinary carbon steel, this material forms a stable protective oxide layer in atmospheric environments, effectively resisting corrosion and extending service life.
With its high strength, excellent toughness, and weather resistance, S355K2G2W corten steel plate finds extensive applications in:
Bridge and Building Structures: Withstands heavy loads and weathering corrosion
Storage tanks and containers: Low maintenance costs, atmospheric corrosion resistance
Mining and heavy machinery: Cranes, excavators, buckets, and underground mining equipment
Transportation equipment: Critical structural components for trailers and large road vehicles
Its excellent weldability and machinability make S355K2G2W hot rolled steel plates a reliable and economical choice for diverse engineering projects.
The Chemical is max composition of product analysis
|
Grade |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Cu% |
|
S355K2G2W |
0.16 |
0.50 |
0.50-1.50 |
0.035 |
0.035 |
0.40-0.80 |
0.25-0.55 |
Mechanical properties of grade S355K2G2W
|
Grade |
Thickness(mm) |
Min Yield(MPa) |
Tensile(MPa) |
Elongation Min (%) |
Test Temperature(℃ |
|
|
S355K2G2W |
5＜t≦16 |
355 |
490-630 |
20 |
|
|
|
S355K2G2W |
16＜t≦40 |
345 |
490-630 |
20 |
|
|
|
S355K2G2W |
40＜t≦63 |
335 |
490-630 |
19 |
|
|
|
S355K2G2W |
63＜t≦80 |
325 |
490-630 |
18 |
|
|
|
S355K2G2W |
80＜t≦100 |
315 |
490-630 |
18 |
|
|
Heat treatment
|
Grade
|
S235 J0W |
S235 J2W |
S355 J0WP |
S355 J2WP |
S355 J0W |
S355 J2G1W |
S355 J2G2W |
S355 K2G1W |
S355 K2G2W |
|
Test Temperature(℃) |
0 |
-20 |
0 |
-20 |
0 |
-20 |
-20 |
-20 |
-20 |
Applications of S355K2G2W Steel Plate
S355K2G2W high strength low alloy steel plate is suitable for manufacturing storage tanks, rail vehicles, oil drilling rigs, port structures, oil platforms, and chemical structures for petroleum equipment handling corrosive media such as hydrogen sulfide.
Contact now to get S355K2G2W Quote
