Gnee completed the supply of 20.91 tons of custom SPA-H Corten Steel Garden Edging components for a customer in France. This project included 17,800 fabricated weathering steel components in three specifications, consisting of top-bent edging strips and 45° pointed steel components.
Unlike conventional flat Corten steel sheets, these products required customized cutting, edge forming, dimensional control, protective packaging, and finished-product inspection. The customer selected an unweathered surface without artificial pre-rusting.
The project demonstrates Gnee's capability to coordinate custom Corten Steel Garden Bed Edging fabrication, SPA-H material sourcing, quality control, and international export supply.
SPA-H Corten Steel Garden Edging Specifications
The order included two top-bent weathering steel edging profiles measuring 2,000 mm in length, together with 12,000 shorter 45° pointed components.
The two long profiles were manufactured from 1.5 mm SPA-H steel, while the short components used 2.0 mm SPA-H steel.
| Product | Specification (mm) | Quantity | Weight |
|---|---|---|---|
| Top-Bent Corten Steel Edging | 1.5 × 113 × 2000 | 4,400 pcs | 11,709 kg |
| Top-Bent Corten Garden Bed Edging | 1.5 × 213 × 2000 | 1,400 pcs | 7,023 kg |
| 45° Pointed SPA-H Component | 2.0 × 40 × 289 | 12,000 pcs | 2,178 kg |
| Total | 3 specifications | 17,800 pcs | 20,910 kg |
SPA-H Weathering Steel Material Supply and Mill Test Certificate
Gnee provided an material inspection certificate identifying SPA-H hot-rolled steel strip manufactured under Q/ASB 202-2023. The mill certificate lists raw-material dimensions of 2.0 × 1250 × C mm. SPA-H is a weathering steel grade also associated with JIS G 3125, but the actual supplied certificate specifies Q/ASB 202-2023.
The certificate records measured material properties, including a yield strength of 453–471 MPa, tensile strength of 535–536 MPa, and elongation of 36.5–39%.
SPA-H Actual Mechanical Test Results
| Test Item | Mill Test Result |
|---|---|
| Yield Strength | 453–471 MPa |
| Tensile Strength | 535–536 MPa |
| Elongation | 36.5–39% |
| 180° Bend Test | Passed |
SPA-H Actual Chemical Composition
| Element | Recorded Content (%) |
|---|---|
| C | 0.08–0.09 |
| Si | 0.42–0.43 |
| Mn | 0.44–0.46 |
| P | 0.076–0.084 |
| S | 0.008–0.023 |
| Ni | 0.03–0.04 |
| Cr | 0.31–0.33 |
| Cu | 0.26 |
Custom Processing of SPA-H Corten Steel Garden Edging
Precision Cutting of SPA-H Corten Steel Edging Strips
The fabrication process begins with material preparation and cutting according to the required component dimensions.
The two long edging profiles use nominal blank dimensions of 1.5 × 113 × 2000 mm and 1.5 × 213 × 2000 mm. The shorter components use 2.0 × 40 × 289 mm material dimensions.
Before production, cutting dimensions and the required profile must be confirmed to avoid errors during batch fabrication.
For suitable parts, CNC shearing machines can be used to prepare straight-edged blanks, while CNC fiber laser cutting machines offer flexibility for customized profiles, slots, and angled details.
The fabrication purchase agreement also required cutting photographs to be checked before continuing production, together with control of straightness for long steel components.
CNC Bending for Top-Bent Corten Steel Garden Bed Edging
The 1.5 × 113 × 2000 mm and 1.5 × 213 × 2000 mm components were specified as top-bent fabricated parts. Unlike flat landscape edging strips, top-bent components incorporate a formed upper edge. Depending on the finalized profile drawing, such a bend may provide an improved edge finish, added sectional rigidity, or a connection feature for an edging system.
CNC press brake equipment is appropriate for producing repeatable bends along long steel profiles. For top-bent SPA-H edging, important fabrication control points include:
- Material thickness and developed blank width
- Bend position, angle, and inside radius
- Profile consistency over the 2,000 mm length
- Straightness and edge quality after bending
The actual bending angles and radii for these profiles must follow the approved product drawings.
Deburring and Surface Quality Control for SPA-H Garden Edging
The purchase agreement specified that the fabricated steel components must be free from visible rust, scratches, burrs, and impact damage at delivery.
For the French shipment, the customer requested no factory pre-rusting treatment.
Therefore, maintaining the required unweathered surface condition during fabrication, handling, and packaging was an important part of the supply process.
Batch Production and Packaging of Corten Steel Garden Edging
For an order consisting of 17,800 pieces, finished-product protection and grouping are important for counting, inspection, handling, and installation.
The fabrication agreement included detailed bundling instructions for each product specification.
| Product Specification | Bundling | Packaging |
|---|---|---|
| 1.5 × 113 × 2000 mm | 10 pcs per bundle | 400 pcs per pallet |
| 1.5 × 213 × 2000 mm | 5 pcs per bundle | 200 pcs per pallet |
| 2.0 × 40 × 289 mm | 10 pcs per bundle | 100 pcs per carton |
Based on the specified quantities and packaging instructions, the allocation corresponds to 11 pallet loads of 113 mm strips, 7 pallet loads of 213 mm strips, and 120 cartons of short components, before any final transport consolidation.
The supply agreement required protective cartons and pallets suitable for the transportation load. It also established a process for cooperating with customer-appointed third-party inspection before final bundling.

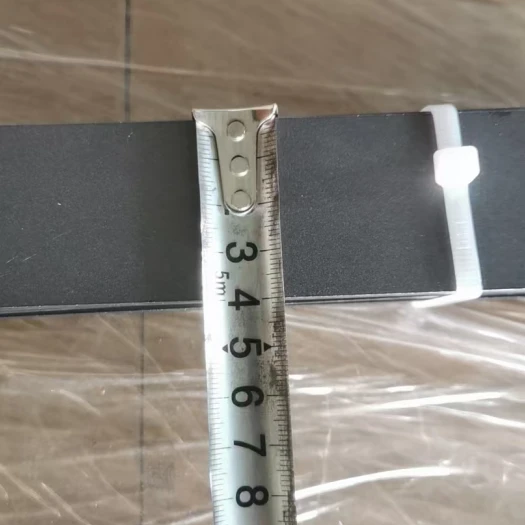

SPA-H Corten Steel Component Quality Inspection
The French order was supported by both an original SPA-H material certificate and a finished-product inspection report.
The material certificate provided chemical composition, tensile test results, and bending test records. The finished-product inspection report focused on component dimensions, surface appearance, packaging, and the final delivery assessment.
For future custom Weathering Steel Garden Edging orders, Gnee can coordinate material traceability, dimensional inspections, surface checks, production photographs, packaging verification, and independent inspection based on the agreed quality plan.
SPA-H Corten Steel Garden Edging Export Delivery to France
The fabrication supply chain involved raw-material coordination, customized production, inspection, packing, and domestic transportation to Shanghai Port for export arrangements.
Gnee can support similar international projects with product drawings, material documentation, customized fabrication, protective packaging, packing lists, commercial invoices, customs coordination, and international freight arrangements.
FOB, CIF, and DDP quotation options can be discussed according to the buyer's delivery requirements and destination.
Request Custom Corten Steel Garden Edging from Gnee
Need custom SPA-H Corten Steel Garden Edging, top-bent weathering steel strips, pointed edging components, or fabricated Corten Steel Raised Garden Bed components?
Gnee supports bulk orders for landscaping contractors, garden product distributors, architectural suppliers, and overseas project buyers.
Send us your product drawings, dimensions, order quantities, required fabrication details, surface finish, certificates, and destination. Our team can review the requirements and prepare a customized supply quotation.
Request Your Custom Corten Steel Garden Edging Quote
