EN 10025-5 S355J0W Corten Steel Weathering Steel Plates

EN 10025-5 S355J0W Corten steel plates are premium structural steels enriched with chromium, nickel, and copper alloy elements, alongside a controlled addition of phosphorous. This unique chemical composition grants S355J0W its legendary self-protection capability.



S355J0W Corten steel weathering steel plates



At Gnee Steel, we specialize in providing high-performance S355J0W steel solutions that meet the most demanding engineering requirements.





When exposed to atmospheric elements, EN 10025-5 S355J0W weathering steel develops a dense, stable protective oxide layer (patina). This layer acts as a barrier that prevents further oxidation of the underlying steel.



Key Benefits:



1. Unmatched Cost-Effectiveness and Lifecycle Value

S355J0W provides a significant financial advantage by dramatically reducing the Total Cost of Ownership (TCO). By eliminating the requirement for initial sandblasting, priming, and multi-coat industrial painting, project managers can realize immediate savings in both material costs and labor hours during the fabrication phase.



More importantly, it removes the staggering long-term expense of maintenance. There is no need for periodic scaffolding, environmental containment of lead-based paint flakes, or the costly downtime associated with repainting infrastructure, making it the most economical choice for projects spanning a 50-to-100-year lifecycle.



2. Exceptional Durability and Structural Resilience

In terms of performance, S355J0W offers an atmospheric corrosion resistance that is four to eight times superior to that of standard structural carbon steels (such as S355JR).



This grade is specifically engineered to maintain its structural thickness and mechanical integrity over decades, even in harsh industrial or rural environments.



A unique "self-healing" property further enhances its durability: if the protective patina is mechanically scratched or chipped, the exposed steel will naturally react with the atmosphere to regenerate the oxide barrier, ensuring continuous, uninterrupted protection that traditional coatings simply cannot provide.



3. Sophisticated Aesthetic Appeal for Modern Design

Beyond its structural prowess, S355J0W is a "living material" highly prized by architects for its dynamic visual evolution. The surface transitions through a rich spectrum of colors-starting as a bright, vibrant orange and maturing over several years into a deep, sophisticated "earth-tone" chocolate brown.



This matte, organic texture provides a timeless industrial aesthetic that harmonizes perfectly with natural landscapes and modern urban environments.



Unlike painted surfaces that eventually fade or peel, the weathering steel patina gains depth and character with age, offering a permanent, high-end finish that reflects architectural permanence.







1. Chemical Composition of S355J0W (%)

C (max)	Si (max)	Mn	P	S (max)	N (max)	Cr	Cu
0.16	0.50	0.50-1.50	0.035	0.035	0.009	0.40-0.80	0.25-0.55



2. Mechanical Properties

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	% Elongation (min)	Impact Test Temp (°C)
S355J0W	510-680	355	16% (in 50mm)	0°C





S355J0W weathering steel plates are the material of choice for high-stress and exposed environments. Gnee Steel supplies S355J0W in various forms, including steel coils, sheets, heavy plates, and flat bars for:

• Infrastructure: Steel frame structures and long-span bridges.

S355J0W serves as the "skeleton" for massive, unpainted structures. Its 355 MPa minimum yield strength allows for the design of long-span bridges and high-rise frameworks that are significantly lighter yet stronger than those built with conventional carbon steel.



By utilizing this grade, engineers can eliminate the staggering costs of initial painting and future maintenance cycles. The steel's ability to form a self-protecting patina ensures that critical connections and support beams remain structurally sound for a century or more, even when exposed to relentless rain, snow, and humidity.



• Transport: Railway vehicles, high-speed bogies, and shipping containers.

For the transportation industry, S355J0W offers a dual advantage: structural muscle and weight optimization.



Railway & High-Speed Bogies: It is the material of choice for high-speed bogies and rail wagon frames that must endure constant high-frequency vibrations and dynamic mechanical stress.



Intermodal Containers: In global logistics, shipping containers made from S355J0W resist the aggressive corrosive effects of maritime salt-fog and industrial pollutants.



This durability extends the service life of the fleet, reduces repair downtime, and increases the allowable payload by permitting thinner, high-strength wall designs.



• Storage: Industrial tanks and silos.

Storage structures like industrial tanks and agricultural silos are constantly under attack from the "boundary layer" of moisture that forms on their exterior surfaces.



S355J0W is the premier solution for these outdoor assets, as its protective oxide layer (patina) creates a hermetic seal that halts deep-seated corrosion.



This eliminates the risk of wall thinning or structural leakage over time. For facility managers, this translates to a "set-it-and-forget-it" investment, removing the need for hazardous sandblasting or chemical repainting that would otherwise be required to protect stored contents.



• Equipment: Heavy machinery and construction equipment.

Construction and earth-moving equipment operate in the most punishing "high-stress" environments on earth. S355J0W is utilized in the fabrication of crane booms, excavator frames, and heavy-duty chassis because of its J0-rated impact toughness-the ability to absorb sudden energy loads at 0°C without fracturing.



Beyond mechanical strength, the weathering properties of the steel ensure that equipment stored in the field or operated in muddy, wet conditions does not suffer from "rust-rot," preserving the resale value and mechanical integrity of the machinery for years of intense service.



Gnee Steel is a leading specialist in EN 10025-5 S355J0W weathering steel. We don't just supply raw materials; we deliver fully integrated engineering solutions tailored to your specific project needs.



Our Professional Value-Added Services:

Technical Conditions: We offer specialized testing and delivery states including UT (Ultrasonic Examination), AR (As Hot Rolled), TMCP, N (Normalized), Q+T (Quenched and Tempered), Z-Direction Tests (Z15, Z25, Z35), and Charpy V-Notch Impact Testing.



Precision Processing: Advanced cutting, pretreatment (shot blasting and painting), galvanizing, and heat treatment are all available in-house.



Strict Quality Control:

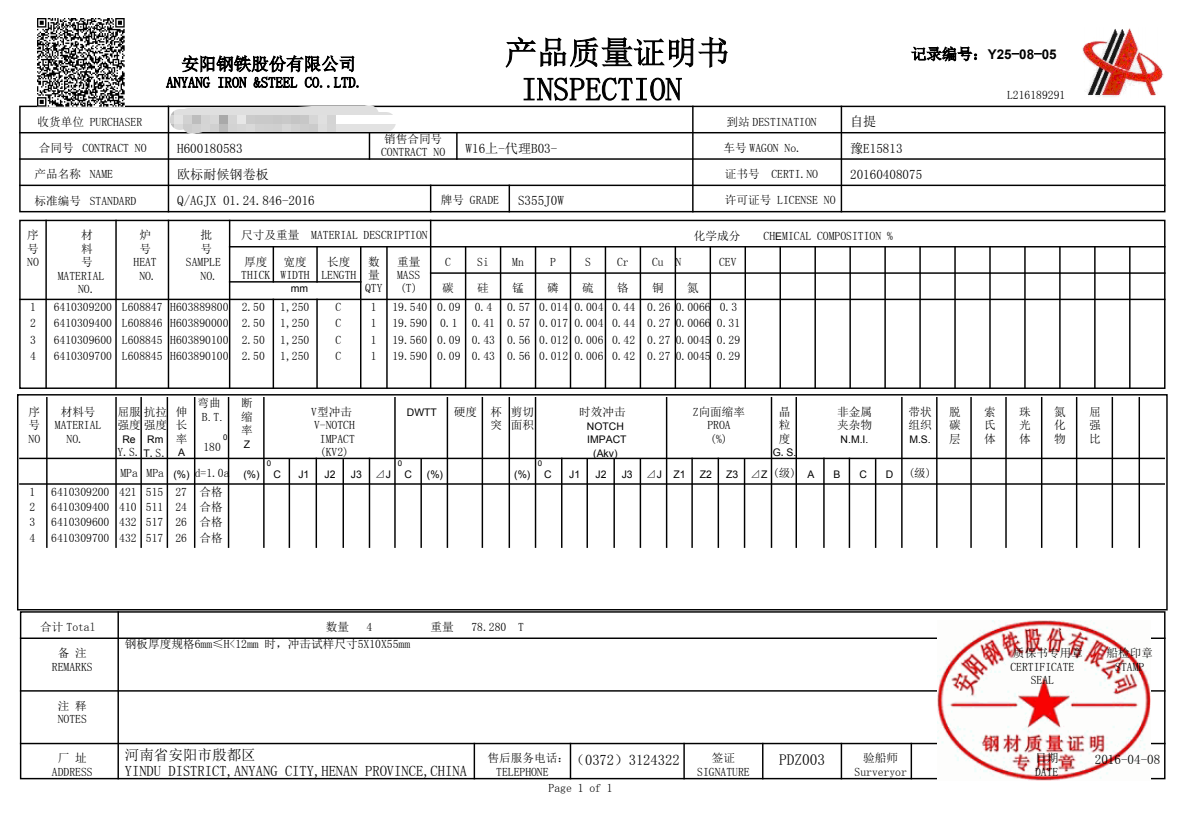

• Mill Test Certification (MTC) with every order.
• Pre-shipment inspections and support for Third-Party Inspection (SGS, TUV, BV).
• Secure, seaworthy packaging to prevent transit damage.



End-to-End Logistics: Our dedicated shipping department handles space booking, document confirmation, and real-time shipment tracking.



Customer-Centric Support: From technical evaluation during the production schedule to post-delivery feedback, Gnee Steel ensures a seamless purchasing experience.





If you are currently in the tendering or material selection stage, this is the right time to confirm the correct grade.



Our technical team can quickly evaluate your drawings, environmental conditions, and project standards to determine whether S355J0W steel is the most cost-effective and compliant solution for your application.



Contact now to get S355J0W steel Quote





What is the American equivalent of S355J0?

ASTM A572 Grade 50: This is a common equivalent to S355J0 in terms of mechanical properties and usage in construction and structural applications. ASTM A36: While A36 has lower mechanical properties than S355J0, it can sometimes be used as an equivalent in less demanding applications.



What grade of steel is S355J0?

S355J0 is a non-alloy structural steel grade defined by the EN 10025-2 standard. The "S" denotes "structural," indicating its use in constructing buildings, machinery, or infrastructure.



Can S355 be hardened?

S355 is not ideally suited to hardening, though it can be subjected to limited heat treatment process such as case hardening. When hardening S355 heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each component.



Can S355 be welded?

S355 structural steel, widely used in offshore, shipbuild- ing, and construction industries, is known for its excellent weld- ability and durability [1], as well as for its corrosion and fatigue characteristics.
