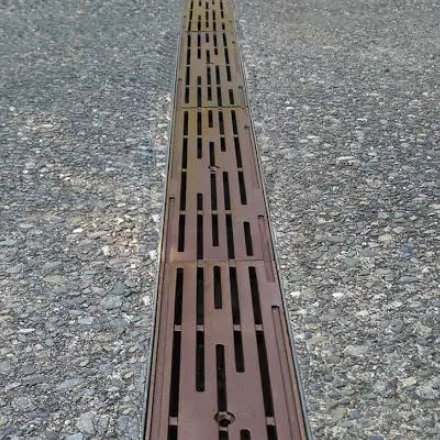

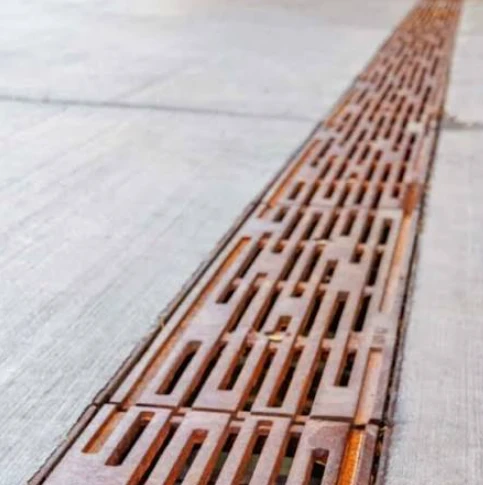

Corten Steel Channel Drain

Corten Steel Channel Drain is a drainage component made from weathering steel, featuring hollow channel structures and grid designs. It offers unique "rust protection against rust" corrosion resistance, high strength, and excellent impact resistance and load-bearing capacity.

Compared with ordinary carbon steel, weathering steel forms a dense and stable protective patina layer in natural environments through the addition of alloying elements such as Cu, Cr, and Ni.

Its atmospheric corrosion resistance can be approximately 2-8 times higher than that of conventional carbon steel, helping reduce long-term anti-corrosion maintenance requirements.

Meanwhile, weathering steel provides superior mechanical properties, with a typical yield strength of 345-355 MPa or higher, which is about 47% higher than Q235 carbon steel (approximately 235 MPa). Its tensile strength is around 485-550 MPa, making it suitable for drainage systems exposed to long-term vehicle loads, pedestrian traffic, and outdoor environmental conditions.

Corten Steel Channel Drains are widely used in sponge city construction, modern landscape projects, commercial plazas, high-end residential drainage systems, outdoor architectural projects, and rainwater collection and transportation systems in transportation hubs.

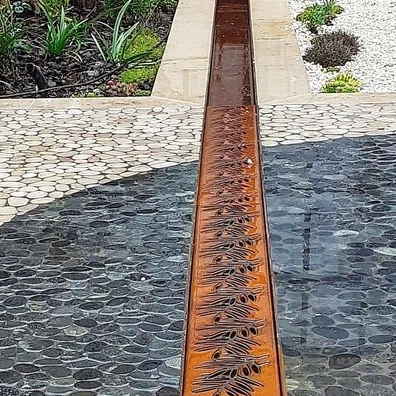

In addition, their natural rust-red appearance blends well with architectural structures, vegetation, and landscape designs, making them ideal for landscape edging, courtyard paving, and decorative structural applications.

Gnee Steel supplies a wide range of weathering steel drainage covers and matching drainage channels, including Corten A steel drain grates, Corten B steel drainage covers, A588 weathering steel channels, SPA-H high weathering steel covers, S355J0WP weathering steel grating, S355J2W weathering steel covers, and 09CrCuSb acid-resistant drainage components.

Besides supplying high-quality weathering steel materials, we also provide value-added processing services, including laser cutting, CNC bending, welding, pre-rusted surface treatment, and customized fabrication.

Based on your project drawings, we can deliver complete weathering steel drainage solutions. Contact our online service team for product specifications, technical support, and quotation requests.

Material Grade: Corten A, Corten B, ASTM A588, SPA-H, S355J0WP, S355J2W, 09CuPCrNi-A

Standard: ASTM A588, ASTM A242, EN 10025-5, JIS G3114, GB/T 4171

Drain Width: 100-500 mm (Customized Available)

Drain Height: 80-300 mm (Customized Available)

Steel Thickness: 3-12 mm (Customized Available)

Cover Type: Perforated Cover, Grating Cover, Slot Drain Cover, Customized Pattern Cover

Length: 500-3000 mm (Customized Available)

Surface Treatment: Natural Weathered Surface, Pre-Rusted Surface, Sandblasting, Laser Cutting, Customized Finishing

Load Capacity: A15, B125, C250, D400 (According to EN 1433 Standard)

Application: Landscape Drainage, Sponge City Construction, Commercial Plaza, Garden Landscape, Residential Area, Pedestrian Area, Parking Area, Industrial Facilities

Package: Steel Frames, Bundles, Seaworthy Wooden (Plywood) Cases or According to Customers' Requirements

Payment Term: T/T, L/C

MOQ: 1 Ton

Delivery Time: Within 15-30 Days (Depending on Quantity and Processing Requirements)



Gnee Corten Steel Channel Drain



Load Capacity

Gnee provides Corten Steel Channel Drains with various load-bearing capacities to meet different application requirements, including pedestrian areas, landscape projects, commercial plazas, parking areas, and heavy-duty traffic zones.

Customized Dimensions

With extensive fabrication experience, Gnee can manufacture Corten Steel Channel Drains according to customer drawings, technical specifications, and project requirements. We support customized widths, heights, lengths, drainage slot sizes, cover designs, and installation structures to ensure seamless integration with different drainage systems.

Fabrication

Gnee provides complete fabrication services for Corten Steel Channel Drains, including precision laser cutting, CNC bending, welding, drilling, grinding, and surface finishing. Our advanced processing equipment ensures accurate dimensions, smooth edges, and high-quality finished products that meet the requirements of customized drainage projects.

Pre-Rusted Surface Treatment

o achieve the natural weathered appearance immediately after installation, Gnee offers professional pre-rusted surface treatment services for Corten Steel Channel Drains. The controlled rusting process creates a uniform rust-red patina layer, enhancing the aesthetic appeal of landscape projects while providing additional corrosion protection and reducing on-site treatment time.

Stable Corten Steel Material Supply

Gnee maintains sufficient inventory of commonly used weathering steel grades, including Corten A, Corten B, ASTM A588, SPA-H, S355J0WP, and S355J2W. With reliable supply capacity and strict quality control, we ensure consistent material quality, stable production, and timely delivery for both customized drainage products and large-scale engineering projects.

To ensure reliable performance, durability, and safety, Gnee conducts comprehensive testing throughout the production process of Corten Steel Channel Drains. Each drainage system is inspected according to material standards and project requirements.

Material Testing:

Gnee conducts chemical composition analysis and mechanical property tests on Corten steel raw materials to verify the content of key alloying elements such as Cu, Cr, Ni, and P. Tests include yield strength, tensile strength, elongation, and hardness testing to ensure the weathering steel meets standards such as ASTM A588, ASTM A242, EN 10025-5, and JIS G3114.

Load-Bearing Testing:

Since Corten Steel Channel Drains are often installed in pedestrian areas, commercial plazas, parking areas, and traffic zones, Gnee performs load-bearing inspections according to application requirements. Drainage covers can be tested based on EN 1433 loading classes, including A15, B125, C250, and D400, ensuring stable performance under different external loads.

Dimensional Inspection:

Gnee strictly checks the dimensions of finished Corten Steel Channel Drains, including channel width, height, cover thickness, length, slot opening size, and installation structure. Accurate dimensional control ensures easy installation and compatibility with different drainage systems and project designs.

Welding Quality Inspection:

For fabricated drainage channels, Gnee performs welding quality inspections to ensure strong and reliable connections. Visual inspection, weld size inspection, and non-destructive testing (NDT) can be provided when required to verify the structural integrity of welded components.

Surface Quality and Corrosion Inspection:

The surface condition of Corten Steel Channel Drains is carefully inspected after natural weathering or pre-rusted treatment. Gnee checks the uniformity, adhesion, and appearance of the rust-red patina layer to ensure both aesthetic performance and long-term corrosion resistance in outdoor environments.

Before shipment, every Corten Steel Channel Drain undergoes final inspection covering product appearance, dimensions, surface condition, packaging, and related documentation.

Gnee ensures that each drainage product meets customer specifications and provides reliable performance for landscape, architectural, and infrastructure projects.

To ensure safe transportation and prevent damage during international shipping, Gnee uses professional export packaging methods for Corten Steel Channel Drains.

Each drainage channel is carefully wrapped with waterproof plastic film and protective materials to prevent scratches, dust, and moisture during handling and transportation.

For sea freight, Corten Steel Channel Drains are securely packed in strong seaworthy wooden cases or plywood crates.

For customized or large-volume orders, Gnee can provide reinforced packaging solutions according to customer requirements, including protective separators, steel frame fixing, and customized packing methods. All packages are suitable for container loading and long-distance international transportation.
