Products Description

S355J2G2W atmospheric corrosion resistant steel plate complies with EN 10155 standards and is classified as atmospheric corrosion-resistant steel. It is commonly used in structural engineering projects requiring resistance to atmospheric and marine environmental corrosion.

Compared to ordinary structural steel, it not only forms a stable protective rust layer in natural environments to extend service life but also demonstrates outstanding mechanical properties.

This steel plate achieves a yield strength exceeding 355 MPa (for thickness ≤16 mm), with tensile strength ranging from 470–630 MPa and elongation maintained above 20%.

It demonstrates excellent low-temperature toughness, exhibiting impact energy ≥27 J at -20°C. These properties make it particularly suitable for constructing storage tanks capable of withstanding low-temperature seawater environments.

As a structural steel grade, S355J2G2W not only offers good weldability but also meets the requirements for riveting, bolting, and welded structural construction.

In engineering applications, it is typically supplied in thicknesses of 6–100 mm and widths of 1500–3000 mm, with a density of approximately 7.85 g/cm³. Its outstanding weather resistance extends atmospheric service life to 4–8 times that of ordinary carbon steel, significantly reducing maintenance costs.

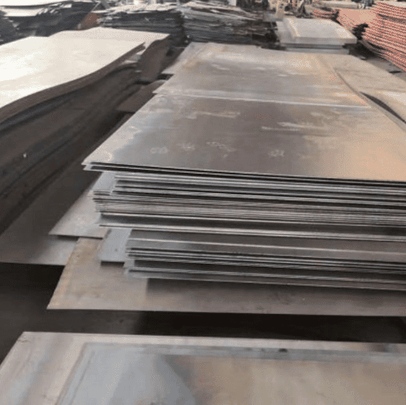

S355J2G2W atmospheric corrosion resistant steel plate

Combining high strength, good toughness, and weather resistance, S355J2G2W hot rolled corten steel plate has become an ideal material for bridges, port facilities, and large-scale building structures.

Specification


Grade :	EN 10025-5 S355J2G2W
Standard :	EN 10025-5
Thickness Range :	2mm to 200mm
Width :	1000mm to 3000mm
Length :	2500mm to 12000mm
Yield Strength :	≥ 355 MPA
Tensile Strength :	470 – 630 MPA
Elongation :	≥ 20%
Impact Test :	-20°C (27J min)
Surface Finish :	Hot Rolled, Rusted, Pickled

S355J2G2W steel Sheet chemical composition(%)

C	Si	Mn	P	S	Cu	Cr	Ni	V	Nb	Al
Max 0.16	Max 0.50	Max 0.50-1.50	Max 0.035	Max 0.035	Max 0.25-0.55	Max 0.40-0.80	Max 0.65	Max 0.02-0.12	Max 0.015-0.060	Min 0.02

S355J2G2W steel Plate mechanical property

Thickness	Yield Strength ReH[N/mm2] transv.min	Tensile Strength Rm[N/mm2]transv	Fracture Elongation[%]transv. min.	Notch Impact Energy1)Ch Vcomplete samplelongitud. min [J]
----	355	510-610	22

S355J2G2W corten steel sheet equivalent grades

EN EU	USA	DIN	JIS	EN
S355J2W(1.8965)	A709-50W	WTSt52-3	SMA50CP	S355J2G2W

Application

EN10155 S355J2G2W Weathering steel Sheet finds extensive application in mining fans, earthmoving buckets, trailers and heavy-duty highway vehicles, drill rings, cranes, excavators, underground mining equipment, bridges, and other high-strength components requiring exceptional toughness.
