SPA-C High Strength Weathering Steel Plate



SPA-C Weathering Steel Plate is a high-strength atmospheric corrosion-resistant steel that conforms to the Japanese Industrial Standard JIS G3125.

SPA – "Steel for resistant atmospheres," indicating its excellent corrosion resistance



C – Denotes the specific chemical composition containing copper, chromium, and nickel for enhanced durability

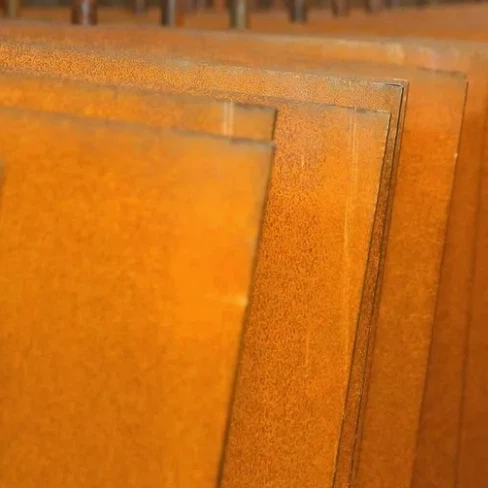

When exposed to the atmosphere, SPA-C Weathering Steel Plate forms a stable, rust-like patina on the surface, which serves as a protective barrier against further corrosion.



This eliminates or greatly reduces the need for painting or other protective coatings, making it ideal for long-term outdoor applications.









Element	C ≤	Si	Mn	P	S	Cr	Ni ≤	Cu
Content	0.12	0.25–0.75	0.20–0.50	0.07–0.15	0.04	0.30–1.25	0.65	0.25–0.65

---





Grade	Plate Thickness	Yield Strength	Tensile Strength	Elongation
SPA-C	–	≥ 325 MPa	≥ 450 MPa	≥ 26%



Although SPA-C Weathering Steel Plate generally does not require heat treatment due to its inherent corrosion resistance, specific applications may require additional processing:



Normalizing – Improves toughness and refines grain structure



Quenching – Increases hardness and strength



Tempering – Reduces brittleness and improves ductility



Post-Weld Heat Treatment (PWHT) – Relieves residual stress after welding



Custom Treatments – Designed for special engineering performance needs







High Atmospheric Corrosion Resistance – Self-protective rust layer extends service life



Excellent Mechanical Strength – Maintains stability under high loads



Good Weldability & Formability – Suitable for complex fabrication projects



Low Maintenance – Minimal need for painting or coatings in most environments





SPA-C Weathering Steel Plate is widely used in structures requiring both strength and resistance to atmospheric corrosion, such as:



Bridges and overpasses



Building facades and roofing



Railway rolling stock



Shipping containers



Towers, poles, and outdoor sculptures



Industrial machinery housings





Standard: JIS G3125

Thickness: Customizable

Width & Length: According to client requirements

Supply Condition: As Rolled (AR), Normalized (N), or TMCP

Testing Options: Ultrasonic Testing, Charpy Impact Test, Third-Party Inspection (SGS, etc.)

Packing: Standard export seaworthy packing



Contact now to fet SPA-C Corten Steel Plate Quote



What is SPA-C steel plate?

SPA-C steel plate is a type of weathering steel produced according to the Japanese standard JIS G3125. It contains alloying elements such as copper, chromium, and nickel, which allow the steel to form a protective rust layer on the surface when exposed to the atmosphere. This protective layer helps prevent further corrosion and significantly extends the service life of the steel.



Does SPA-C steel need painting or coating?

In most outdoor environments, SPA-C steel does not require painting. The steel forms a stable oxide layer (patina) that protects the material from further corrosion.

However, in extremely corrosive environments such as marine or chemical industrial areas, additional protective coatings may be recommended.



How long does it take for SPA-C steel to develop the protective rust layer?

Under normal atmospheric conditions, SPA-C steel typically begins forming a stable protective patina within several months to two years, depending on environmental factors such as humidity, rainfall, and air pollution.

Once the patina is fully developed, the corrosion rate decreases significantly.
