What is SPA-H Shipping Container Corten Steel?
SPA-H High-Strength Weathering Container Steel is a high-performance structural steel specially developed for marine shipping containers and intermodal transportation equipment. Designed to withstand high humidity, salt spray, and frequent loading and unloading, it is widely used in ocean freight containers, railway freight cars, port handling equipment, and offshore logistics facilities.
SPA-H steel contains 0.25–0.55% Copper (Cu), 0.30–1.25% Chromium (Cr), and 0.20–0.65% Nickel (Ni), enabling it to form a dense and stable protective oxide layer on its surface. This protective patina effectively resists marine salt spray and industrial atmospheric corrosion. Its atmospheric corrosion resistance is approximately 4–8 times greater than that of conventional carbon steel, reducing repainting and maintenance requirements while lowering lifecycle maintenance costs by up to 40%.
SPA-H steel offers a minimum yield strength of 355 MPa, tensile strength of 490–610 MPa, and elongation of at least 21% (depending on thickness). Combining high strength, excellent toughness, and superior fatigue resistance, it effectively minimizes container deformation, weld cracking, and corrosion, ensuring long-term structural integrity and reliable service performance.
We supply JIS G3125 SPA-H high-strength weathering steel plates, widely used in the manufacture of marine shipping containers and intermodal transportation equipment.
Produced through precision hot rolling and pickling processes, SPA-H steel features a smooth and dense surface that helps reduce the accumulation of salt, dirt, and moisture during marine transportation, lowering container cleaning frequency and routine maintenance requirements. Under typical marine service conditions, lifecycle maintenance costs can be reduced by approximately 20%–40%.
Compared with conventional carbon and low-alloy structural steels such as Q235B, SPA-H offers significantly superior atmospheric corrosion resistance in humid, salt-laden, and harsh climatic environments. It effectively resists rusting, oxide scale flaking, and corrosion perforation.
With a minimum yield strength of 355 MPa, tensile strength of 490–610 MPa, and excellent toughness and fatigue resistance, SPA-H maintains outstanding structural stability during long-term service, heavy stacking, and transportation across diverse climate zones, effectively preventing local deformation, sidewall bulging, and permanent structural deformation.
Under typical marine atmospheric conditions, SPA-H container steel provides a service life approximately 2–3 times longer than that of conventional carbon steel containers.
It significantly reduces unplanned repairs caused by corrosion perforation, minimizes logistics downtime and the risk of cargo damage, and helps container manufacturers and operators achieve a lower total cost of ownership (TCO) throughout the container's service life.

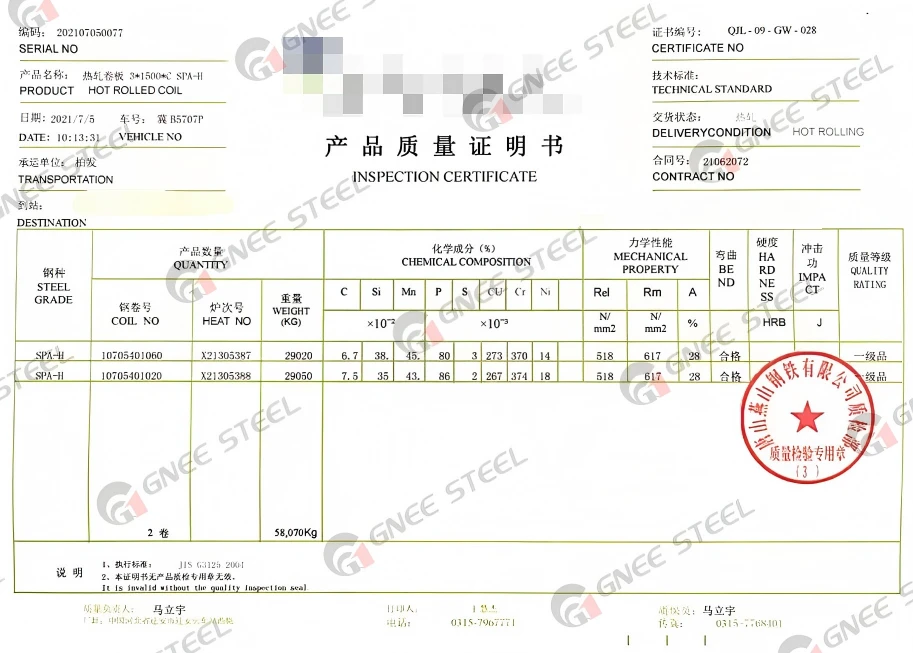

We provide EN 10204 3.1/3.2 certificates, MTC reports, and third-party inspection services according to customer requirements.
SPA-H Shipping Container Corten Steel Specification
| Item | Specification |
|---|---|
| Product Name | JIS G3125 SPA-H High-Strength Weathering Steel Plate |
| Standard | JIS G3125 |
| Material Grade | SPA-H Weathering Steel |
| Equivalent Grades | ASTM A588 / Corten B (Reference Equivalent) |
| Manufacturing Process | Hot Rolled, Pickled, Shot Blasted (Optional) |
| Thickness | 1.6 mm – 100 mm (Customized Available) |
| Width | 1,000 mm – 3,200 mm |
| Length | 2,000 mm – 12,000 mm or Customized |
| Plate Form | Steel Plate, Steel Sheet, Steel Coil |
| Surface Finish | Hot Rolled Surface, Pickled Surface, Shot Blasted Surface |
| Heat Treatment | As Rolled, Normalized (Optional) |
| Yield Strength | ≥355 MPa |
| Tensile Strength | 490–610 MPa |
| Elongation | ≥21% (Depending on Thickness) |
| Corrosion Resistance | Approximately 4–8 Times Higher Than Ordinary Carbon Steel |
| Application | Shipping Containers, Railway Wagons, Bridges, Buildings, Port Equipment, Offshore Structures |
| Certification | EN 10204 3.1 / 3.2, Mill Test Certificate (MTC) |
Chemical Composition of JIS G3125 SPA-H High-Strength Weathering Steel
| Element | Chemical Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.12 |
| Silicon (Si) | ≤ 0.75 |
| Manganese (Mn) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
| Copper (Cu) | 0.25 – 0.55 |
| Chromium (Cr) | 0.30 – 1.25 |
| Nickel (Ni) | 0.12 – 0.65 |
Physical Properties of JIS G3125 SPA-H High-Strength Weathering Steel
| Property | Value |
|---|---|
| Density | Approx. 7.85 g/cm³ |
| Melting Point | Approx. 1,450–1,520°C |
| Elastic Modulus | Approx. 200 GPa |
| Thermal Conductivity | Approx. 40–50 W/(m·K) |
| Specific Heat Capacity | Approx. 460–500 J/(kg·K) |
| Poisson's Ratio | Approx. 0.30 |
| Coefficient of Thermal Expansion | Approx. 11.7 × 10⁻⁶ /°C (20–100°C) |
| Electrical Resistivity | Approx. 0.20 μΩ·m |
Mechanical Properties of JIS G3125 SPA-H Weathering Steel
| Property | Requirement |
|---|---|
| Yield Strength (YS) | ≥ 355 MPa |
| Tensile Strength (TS) | 490 – 610 MPa |
| Elongation (EL) | ≥ 21% |
| Bendability | Good (Suitable for Cold Bending) |
| Impact Toughness | Available Upon Request |
Common Applications in Shipping Container
Container Side Walls and Roof Panels: Steel components exposed to marine salt spray, humidity, and wet-dry cycles. SPA-H provides excellent corrosion resistance, reducing rust formation and extending container service life.
Container Bottom Frames and Cross Members: Structural parts subjected to heavy cargo loads and repeated lifting. SPA-H offers high strength and fatigue resistance, preventing deformation and structural damage.
Corner Posts and Reinforcement Components: Load-bearing parts exposed to continuous stacking and transportation stresses. SPA-H ensures reliable structural stability and long-term durability.
Why is SPA-H weathering steel suitable for building maritime containers?
Shipping containers operate in harsh marine environments with high humidity, salt spray, and repeated loading. SPA-H weathering steel forms a dense protective patina through Cu, Cr, and Ni alloying, providing 4–8 times higher atmospheric corrosion resistance than ordinary carbon steel.
With ≥355 MPa yield strength and 490–610 MPa tensile strength, SPA-H effectively prevents corrosion, deformation, and fatigue damage, extending container service life by up to 2–3 times.
GNEE supplies JIS G3125 SPA-H steel plates and coils with stable stock, strict quality control, and customized cutting services. Contact us today for competitive pricing and technical support for your container projects.
Contact now to get SPA-H steel plates Quote
立即联系,获取SPA-H钢板报价
Inspection Services for SPA-H Weathering Steel
Chemical Composition Analysis：We conduct spectrometer testing to verify the content of key alloying elements such as Cu, Cr, and Ni, ensuring compliance with JIS G3125 requirements.
Mechanical Property Testing：Including yield strength, tensile strength, elongation, and hardness testing to verify the steel's structural performance and durability.
Dimensional Inspection：We check thickness, width, length, flatness, and tolerance to ensure accurate dimensions for container fabrication and processing.
Surface Quality Inspection：Visual inspection and surface assessment are performed to ensure the plates are free from defects such as cracks, pits, peeling, and excessive surface imperfections.
Ultrasonic Testing (UT)：Ultrasonic inspection is available to detect internal defects and ensure structural reliability for critical applications.
GNEE ensures every SPA-H weathering steel plate arrives in excellent condition through professional export packaging and strict loading procedures.
