Products Description

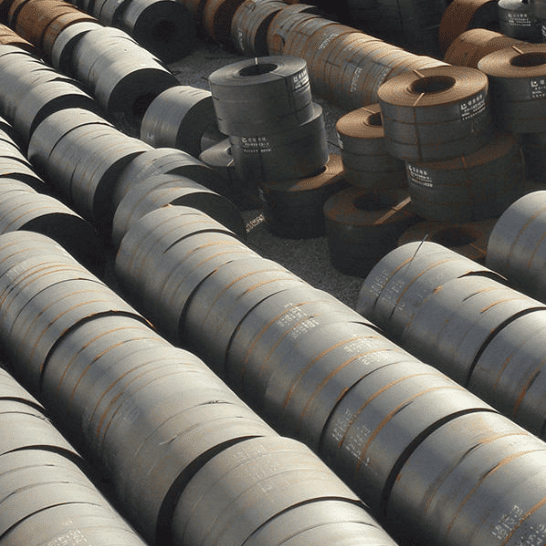

SPA-H high-strength weathering steel coils are mainly used in the container industry because ordinary carbon steel corrodes easily in the air, causing significant economic losses.
SPA-H high-strength weathering steel coils feature stable mechanical properties, with typical yield strength of 345–485 MPa, tensile strength of 470–630 MPa, and elongation of 18–22%, with minimal variation, ensuring reliable performance over long-term use.
The SPA-H coils we produce exceed standard requirements in both strength and weathering resistance.
Their surface forms a 50–100 μm thick self-protective oxide layer, allowing a service life of 40–80 years in humid or marine environments.
Specification
| Product Name | SPA-H Corten Steel Coil Strip |
| Thickness | 0.1mm-300mm or customized as required |
| Width | 1500mm-2500m or customized as required |
| Length | All Sizes Can be customzied |
| Surface Finish | All Sizes Can be customzied |
| Standard | ASTM, JIS, GB, AISI, DIN, BS, EN |
| Certifications | ISO 9001 BV SGS |
| Packing | Industry standard packaging or according to client's requirement |
| Payment terms | T/T or LC at sight |
| Trade Terms | EXW, FOB, CIF, CFR |
| Loading Port | TIANJIN, SHANGHAI, DALIAN QINGDAO, etc |
| Delivery time | Fast delievery in 7 days, up to order quantity |
| Quality | Mill Test Certificate supplied with the shipment, third part inspection is acceptable |
| Packing Detail | Standard export package:Wooden pallet +paperboard +steel strip Customized requirements are accepted |
| Cutting Type | All Sizes Can be customzied |
| MOQ | 1 Ton |
| Capacity | 10, 000 ton per month |
Mechanical properties for JIS G3125 SPA-H STEEL coil
|
Mechanical Property for SPA-H steel plate |
|||
|
Thickness (mm) |
Yield strength (≥Mpa) |
Tensile strength (Mpa) |
Elongation % ≥ |
|
T≤ 6 |
355 |
490 |
22 |
|
T> 6 |
355 |
490 |
15 |
Chemical composition for JIS G3125 SPA-H steel Coil(Heat Analysis Max%)
|
Main chemical elements composition of SPA-H |
|||||||
|
C |
Si |
Mn |
P |
S |
Cu |
Cr |
Ni |
|
0.12 |
0.20-0.75 |
0.6 |
0.07-0.15 |
0.035 |
0.25-0.55 |
0.30-1.25 |
0.65 |
Contact now to get SAP-H Quote
