In modern bridge construction, S355J0W weathering steel plate is widely used as an important structural material due to its excellent performance, playing a key role in ensuring structural safety, extending service life, and improving construction efficiency.

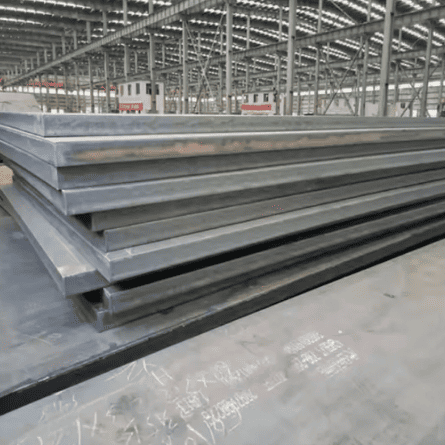

S355J0W weathering steel plate
As an EN standard structural steel with optimized chemical composition and mechanical properties, it offers significant advantages in bridge engineering applications.
Contact now to get S355J0W Corten Steel Quote
Material Definition of S355J0W Corten steel plate
| Item | Description |
|---|---|
| Steel Grade | S355J0W weathering steel plate |
| Standard | EN 10025-5 (European Standard) |
| Steel Type | Structural steel with weathering resistance |
| Main Feature | High strength + atmospheric corrosion resistance |
| "W" Meaning | Weathering resistance (suitable for outdoor environments) |
| Typical Applications | Bridges, steel structures, outdoor engineering |
Chemical Composition of S355J0W Corten steel plate
| Element / Feature | Description |
|---|---|
| Alloy System | Low-alloy structural steel |
| Key Elements | Cu, Cr, Ni, P (weathering-enhancing elements) |
| Copper (Cu) | Promotes formation of protective oxide layer |
| Chromium (Cr) | Improves corrosion resistance |
| Nickel (Ni) | Enhances toughness and durability |
| Corrosion Mechanism | Forms stable protective patina layer |
| Environmental Suitability | Humid, rainy, and outdoor exposure conditions |
Mechanical Properties of S355J0W steel plate
| Property | Value / Performance |
|---|---|
| Yield Strength | ≈ 355 MPa |
| Strength Level | High-strength structural steel |
| Plasticity | Good |
| Toughness | Excellent |
| Impact Resistance | Good, suitable for low-temperature environments |
| Anti-deformation Ability | Strong resistance under load |
| Structural Safety | High reliability for engineering use |
Contact now to get S355J0W Corten Steel Quote
Advantages of EN S355J0W Weathering Steel Plate in Bridge Applications
1. EN S355J0W Weathering Steel Plate with Strong Atmospheric Corrosion Resistance
Bridges are continuously exposed to harsh outdoor environments such as wind, rain, temperature variation, and industrial pollution. EN S355J0W weathering steel plate (S355J0W corten steel plate) offers excellent atmospheric corrosion resistance due to its Cu-Cr-Ni alloy system and optimized chemical composition.
By forming a dense and stable protective patina layer on the surface, S355J0W steel plate significantly slows down further oxidation.
Compared with ordinary carbon steel, its corrosion resistance is approximately 2–8 times higher, effectively reducing maintenance frequency and extending bridge service life.
2. High Strength S355J0W Steel Plate Ensuring Bridge Structural Safety
As a high-strength structural steel, S355J0W weathering steel plate provides a minimum yield strength of 355 MPa (≤16mm thickness), with tensile strength ranging from 470–630 MPa.
This high strength and good toughness allow bridge designers to use thinner steel sections while still meeting structural safety requirements. This helps achieve a lightweight bridge design, reducing overall steel consumption while maintaining excellent load-bearing performance.
Its good weldability also ensures reliable joint performance in large welded bridge structures.
3. S355J0W Corten Steel Plate for Efficient Bridge Construction
In bridge engineering, fabrication processes such as cutting, welding, and assembly are key factors affecting construction efficiency. S355J0W corten steel plate offers excellent weldability and forming performance, allowing fast and reliable on-site installation and prefabricated bridge fabrication.
The material supports common welding methods such as MAG and arc welding, while maintaining stable mechanical properties during processing, with a yield strength of up to 355 MPa (≤16 mm thickness) and tensile strength ranging from 470–630 MPa, ensuring structural integrity throughout fabrication.
In addition, its good plasticity and low crack sensitivity reduce processing defects and rework rates, helping to shorten construction cycles and improve overall project efficiency in large-scale steel bridge applications.
4. Cost-Effective S355J0W Weathering Steel Plate for Long-Term Bridge Economy
Although the initial cost of S355J0W weathering steel plate may be higher than ordinary carbon steel, its long-term economic advantage is significant.
Due to its self-protecting corrosion resistance, maintenance and repainting costs can be greatly reduced over the bridge lifecycle. In addition, its high strength allows material reduction, and its lightweight structure reduces transportation and installation costs.
Overall, using S355J0W corten steel plate in bridge construction provides a superior lifecycle cost advantage and supports sustainable infrastructure development.
Contact now to get S355J0W Corten Steel Quote

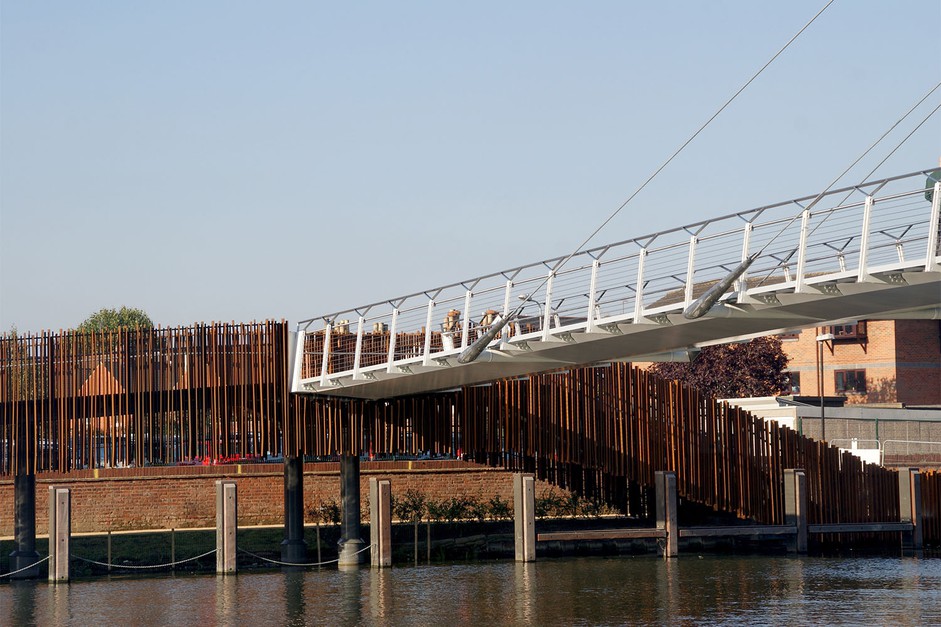

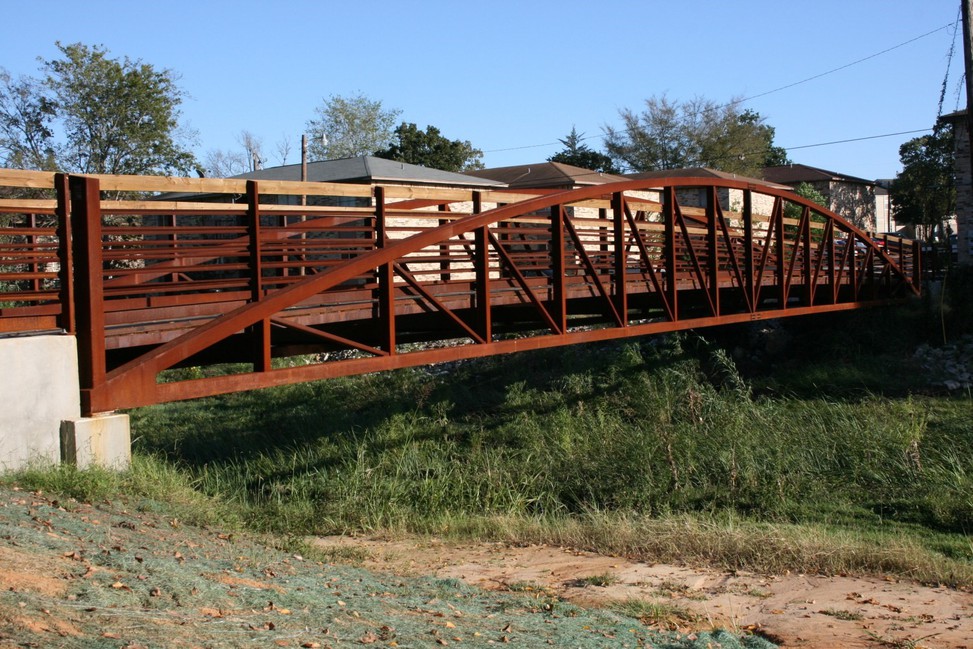

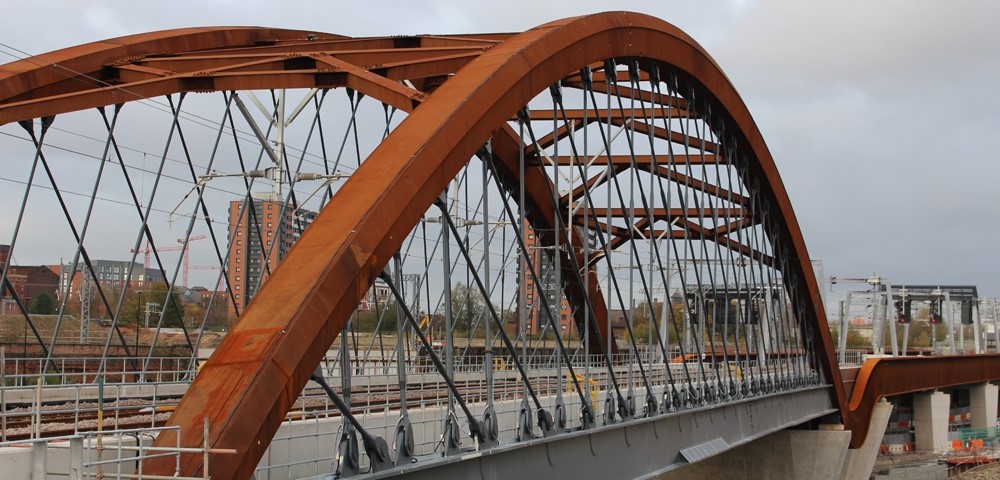

Application of S355J0W Steel Plate in Bridge Engineering
In a long-span highway bridge project located in a coastal region, S355J0W weathering steel plate (S355J0W corten steel plate) was used for the main girders and bridge deck structures.
The bridge operates in a high-humidity, salt-spray, and strong wind environment, which places high demands on the corrosion resistance of steel materials.
S355J0W steel plate offers a yield strength of 355 MPa and a tensile strength of 470–630 MPa, fully meeting the load-bearing requirements under vehicle traffic and wind loads. In addition, its excellent weathering performance allows a protective oxide layer to form on the steel surface, effectively slowing down corrosion development.
In actual service, compared with ordinary carbon steel, S355J0W steel plate significantly reduces maintenance frequency and minimizes the need for protective coating systems.
After years of operation, the bridge remains in stable structural condition, making S355J0W corten steel plate highly suitable for coastal and high-humidity bridge engineering environments.
EN standard S355J0W weathering steel plate demonstrates significant advantages in bridge construction due to its excellent atmospheric corrosion resistance, mechanical properties, and construction convenience.
Its corrosion resistance and high strength characteristics meet the safety and durability requirements of bridges in complex environments, while also simplifying the construction process and reducing overall project costs.
Contact now to get S355J0W Corten Steel Quote
What is S355J0W steel plate?
S355J0W is an EN 10025-5 weathering steel (corten steel) designed for atmospheric corrosion resistance. It is a low-alloy structural steel that forms a protective patina layer when exposed to weather, helping to reduce corrosion and extend service life in outdoor environments.
What is S355J0W used for?
S355J0W weathering steel is widely used in bridges, railway wagons, shipping containers, building façades, landscape structures, outdoor sculptures, and general steel structures exposed to atmospheric conditions, especially in temperate and non-extreme cold regions.
What is the difference between S355J0W and S355J2W?
The main difference is low-temperature impact toughness. S355J0W is tested at 0°C, while S355J2W is tested at -20°C, meaning S355J2W performs better in colder climates. Their strength and corrosion resistance are otherwise very similar.
Does S355J0W steel rust?
Yes, but in a controlled way. S355J0W forms a dense protective rust layer (patina) on its surface, which prevents deeper corrosion. This makes it different from ordinary carbon steel, which continues to corrode without protection.
Does S355J0W need painting?
In most outdoor applications, S355J0W does not require painting. Its natural protective oxide layer reduces the need for coating and maintenance, which helps lower lifecycle costs.
