S355J0W steel plate is a low-alloy high-strength steel with good weldability and crack resistance. Its main chemical composition includes elements such as carbon, manganese, silicon, phosphorus, and sulfur.
S355J0W steel plate
Through a special heat treatment process, it exhibits excellent performance in terms of strength, toughness, and corrosion resistance. The yield strength of this steel plate can reach 355 MPa, making it suitable for various building structures, especially those requiring load-bearing capacity and wind pressure resistance.
Chemical Composition of S355J0W Weathering steel plate
| Element | Content |
|---|---|
| Carbon (C) | ≤0.16% |
| Silicon (Si) | ≤0.50% |
| Manganese (Mn) | 0.50–1.50% |
| Phosphorus (P) | ≤0.030% |
| Sulfur (S) | ≤0.025% |
| Chromium (Cr) | 0.40–0.80% |
| Nickel (Ni) | ≤0.65% |
| Copper (Cu) | 0.25–0.55% |
| Molybdenum (Mo) | ≤0.30% |
| Nitrogen (N) | ≤0.010% |
Mechanical & Physical Properties of S355J0W Corten steel plate
| Property | Value |
|---|---|
| Yield Strength (≤16mm) | ≥355 MPa |
| Yield Strength (16–40mm) | ≥345 MPa |
| Yield Strength (40–63mm) | ≥335 MPa |
| Tensile Strength | 470–630 MPa |
| Elongation | ≥22% |
| Impact Test Temperature | 0°C |
| Impact Energy (Akv) | ≥27 J |
| Weldability | Excellent (suitable for common welding processes) |
| Corrosion Resistance | 2–8 times higher than carbon steel |
| Delivery Condition | Hot rolled / Normalized / Normalized rolled |
Contact now to get S355J0W weathering steel plate Quote
Applications of S355J0W Thick Steel Plate in Building Structures
In building structures, S355J0W weathering steel plate is widely used in the following key applications due to its excellent mechanical strength, weldability, and atmospheric corrosion resistance.
1. High-Rise Building Frame Structures
High-rise buildings require structural materials with high strength, good toughness, and excellent wind load resistance. S355J0W steel plate is commonly used in beam and column systems of building frames due to its stable mechanical performance and durability.
For example, in a high-rise office building project, S355J0W corten steel was used for the main structural beams and columns. After long-term service, the structure showed excellent stability with no significant deformation or damage, demonstrating its reliability in S355J0W steel structure applications.

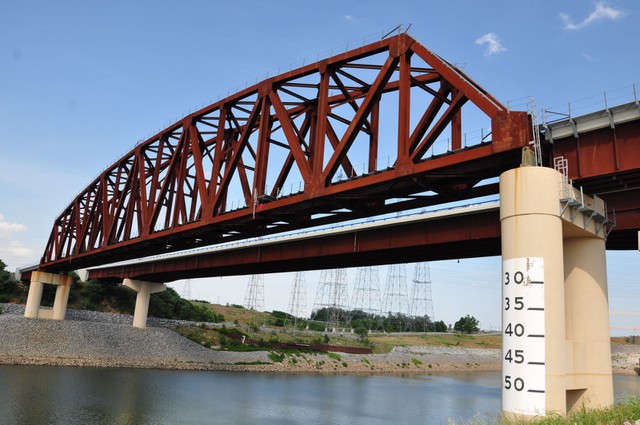

2. Bridge Engineering
Bridges are critical infrastructure and require materials with high strength and long-term durability. S355J0W weathering steel plate is often used in main girders and supporting structures due to its superior atmospheric corrosion resistance.
In a large bridge construction project, S355J0W steel plate was used for welded main girders. After years of service, the bridge structure showed no obvious rusting or fatigue damage, ensuring safe and stable transportation performance. This confirms the excellent performance of S355J0W corten steel in bridge engineering applications.
3. Industrial Factory Buildings
In industrial plant construction, steel structures must withstand heavy equipment loads and long-term operational stress. The high strength and toughness of S355J0W thick steel plate make it an ideal material for load-bearing components.
In a chemical plant project, S355J0W weathering steel was used as the main load-bearing structure. After long-term operation, the overall stability of the factory building remained excellent, effectively reducing the risk of structural failure and improving service safety.
4. Marine Engineering
Marine engineering environments are highly corrosive due to salt spray, humidity, and wave impact. Therefore, materials must have strong corrosion resistance and impact resistance. S355J0W corten steel plate is widely used in such environments.
In an offshore platform project, S355J0W steel plate was selected as the main load-bearing structure. After repeated exposure to wind and wave conditions, the platform remained structurally stable without any significant damage, demonstrating the excellent durability of S355J0W weathering steel in offshore engineering applications.
Contact now to get S355J0W weathering steel plate Quote
Advantages of S355J0W Thick Steel Plate
Compared with other steel grades, S355J0W weathering steel plate shows significant advantages in the following aspects:
1. Excellent Weldability
S355J0W thick steel plate has excellent weldability and can be reliably welded with other structural materials, ensuring high-quality joints and improving construction efficiency.
Unlike some low-strength steels, which are prone to welding cracks, S355J0W steel plate helps maintain structural integrity and reduces the risk of welding defects, thereby improving overall safety in steel structure projects.
2. Strong Corrosion Resistance
After special alloying treatment, the surface of S355J0W weathering steel forms a stable protective oxide layer that effectively resists environmental corrosion and extends service life.
In contrast, ordinary carbon steel is more prone to rusting in humid or corrosive environments, which can lead to a reduction in structural strength over time. This makes S355J0W corten steel highly suitable for outdoor and exposed applications.
3. Excellent Mechanical Properties
S355J0W steel plate offers high strength and good toughness, allowing it to perform exceptionally well in load-bearing structures. It can effectively resist external impact and pressure, making it widely used in high-rise buildings, bridges, and other major infrastructure projects.
Compared with lower-strength materials, S355J0W weathering steel provides significantly better structural performance and reliability.
4. Economic Efficiency
Although the initial cost of S355J0W thick steel plate may be higher, its durability and corrosion resistance significantly reduce long-term maintenance and replacement costs. In the overall lifecycle of a project, it offers strong economic advantages.
In contrast, lower-cost steel materials often require frequent maintenance or replacement, resulting in higher total lifecycle costs. Therefore, S355J0W corten steel plate provides a better cost-performance ratio for long-term engineering applications.
The application of S355J0W thick steel plate in building structures demonstrates its clear advantages in strength, corrosion resistance, and durability.
Through comparison with other materials, it is evident that S355J0W steel plate not only improves structural safety and stability but also offers long-term economic benefits, making it an ideal choice for modern steel structure engineering projects.
Looking for a durable and cost-effective weathering steel solution for your project? S355J0W corten steel plate offers excellent strength, weldability, and long-term corrosion resistance, making it ideal for bridges, buildings, and outdoor structures, feel free to contact us today for the latest price and technical support!
Contact now to get S355J0W weathering steel plate Quote
Does S355J0W need painting?
In most outdoor applications, S355J0W does not require painting. Its natural protective oxide layer reduces the need for coating and maintenance, which helps lower lifecycle costs.
Is S355J0W easy to weld?
Yes. S355J0W has good weldability using standard welding methods such as MAG and arc welding. In most cases, no complex post-weld heat treatment is required.
What environments is S355J0W suitable for?
S355J0W is suitable for temperate and subtropical climates, including urban outdoor structures, bridges, containers, and coastal or high-humidity environments where extreme low-temperature conditions are not present.
How long does S355J0W steel last?
When properly used in suitable environments, S355J0W weathering steel can significantly extend service life compared to normal carbon steel, often lasting several decades with minimal maintenance.
