Q355GNH Corten Steel Tube is a high-strength weathering steel pipe designed for long-term outdoor structural applications. Compared with ordinary carbon steel, Q355GNH Weathering Steel Tube contains alloying elements such as Cu, Cr, and Ni, which enable the formation of a dense, self-protective rust layer (patina).

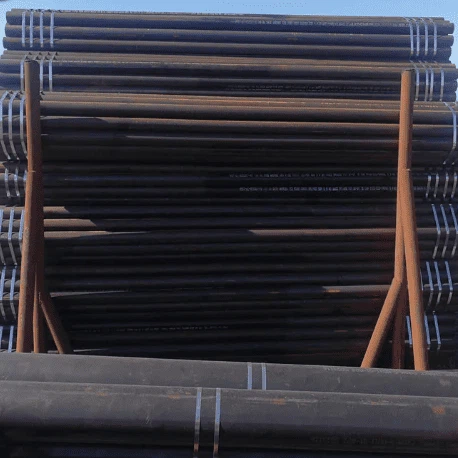

Q355GNH Corten Steel Tube
This patina effectively slows down corrosion, reduces maintenance costs, and extends service life, making it ideal for infrastructure, construction, and heavy-duty environments.
As a professional supplier, Gnee provides Q355GNH welded steel pipes manufactured through HFW (ERW) and LSAW processes, ensuring consistent quality and structural reliability.
Chemical Composition and Mechanical Properties of Q355GNH Corten Steel Tube
The performance of Q355GNH steel tube for sale depends on its precise alloy composition, which directly affects corrosion resistance and strength.
Chemical Composition of Q355GNH (%)
| Element | C | Si | Mn | P | S | Cu | Cr | Ni |
|---|---|---|---|---|---|---|---|---|
| Value | ≤0.16 | 0.20–0.50 | 0.50–1.50 | ≤0.030 | ≤0.030 | 0.25–0.55 | 0.40–0.80 | ≤0.65 |
Mechanical Properties of Q355GNH Steel Pipe
| Property | Value |
|---|---|
| Yield Strength (ReH) | ≥ 355 MPa |
| Tensile Strength (Rm) | 490 – 630 MPa |
| Elongation (A%) | ≥ 22% |
| Impact Energy (20°C) | ≥ 34 J |
This combination ensures high load-bearing capacity + long-term durability in outdoor environments.
Manufacturing Process of Q355GNH Welded Steel Pipe
To maintain the weathering performance, the welding and forming process must be strictly controlled.
Production Flow
- Slitting & Edge Milling
Ensures clean edges for deep weld penetration
- Cold Forming
Steel coil is gradually formed into a cylindrical shape
- Welding Process
- HFW / ERW: Ideal for thin to medium wall pipes
- LSAW: Suitable for thick-wall, large-diameter pipes
- Seam Heat Treatment
Eliminates residual stress and balances microstructure
- NDT Inspection (100%)
Ultrasonic or X-ray testing ensures zero internal defects
Weld seam performance matches base metal strength
Size Range & Supply Capability of Q355GNH Corten Steel Tube
We offer flexible production for various project requirements.
Q355GNH Steel Tube Dimensions
| Parameter | Range |
|---|---|
| Outer Diameter | 21.3mm – 610mm (ERW) / up to 1420mm (LSAW) |
| Wall Thickness | 2.0mm – 25mm (ERW) / up to 60mm (LSAW) |
| Length | 6m / 12m / Custom |
| Standards | GB/T 4171, GB/T 1591, ASTM A588 Equivalent |
Key Advantages of Q355GNH Weathering Steel Tube
Superior Corrosion Resistance
- 2–8× higher than ordinary carbon steel
- Forms stable protective patina
- Ideal for outdoor exposure
Lower Life Cycle Cost
- No painting required in most environments
- Reduced maintenance and labor costs
High Strength & Lightweight Design
- 355 MPa yield strength allows thinner sections
- Reduces overall structural weight
Architectural Aesthetic
- Natural rust-red finish
- Widely used in modern bridges and facades
Typical Applications Q355GNH Corten Steel Tube
Our Q355GNH Corten Steel Tube is widely used in:
- Infrastructure: Bridges, highways, transmission towers
- Rail & Transport: Containers, rail wagons
- Architecture: Building facades, landscape structures
- Heavy Equipment: Mining machinery, agricultural equipment
Many suppliers offer Q355B and label it as weathering steel.
Problem:
- Missing Cu–Cr–Ni composition
- No real patina formation
- Faster corrosion and shorter lifespan
Our Solution:
- Full Mill Test Certificate (MTC) provided
- Strict compliance with GB/T 4171
- Guaranteed weathering performance
Why Choose Our Q355GNH Steel Tube?
Accurate Chemical Control – Real Weathering Steel
If your project depends on long-term corrosion resistance, material composition is not optional. We ensure every batch meets true Q355GNH standards, not substitutes.
Reliable Weld Quality for Structural Safety
In high-load structures, weld seams are the weakest point. Our Q355GNH welded steel pipes undergo 100% NDT + hydrostatic testing, ensuring full structural integrity.
Flexible Custom Supply (Reduce Your Project Cost)
Standard sizes often create waste. We offer custom length, thickness, and diameter, helping you:
- Reduce cutting loss
- Improve installation efficiency
- Control total project cost
If you are building a project that must last 10–30 years outdoors, choosing the wrong steel grade will cost far more than the initial savings.
If you need a material that combines strength, corrosion resistance, and long-term reliability, then Q355GNH Corten Steel Tube is the correct solution-not a compromise.
If you are looking for a supplier who can provide verified chemical composition, stable production, and engineering support, Gnee is ready to support your project from drawing to delivery.
Contact us now to get a real-time quote, MTC sample, and technical support for your Q355GNH steel tube project.
Contact now to get Q355GNH welded steel pipes Quote
What is Q355GNH Steel Tube?
Q355GNH Steel Tube is a high-strength weathering steel tube designed for outdoor structural use. It contains copper, chromium, and nickel, which allow it to form a protective rust layer that significantly improves corrosion resistance compared to ordinary carbon steel.
Is Q355GNH the same as Corten Steel Tube?
Yes, Q355GNH Corten Steel Tube is widely considered equivalent to weathering steels like ASTM A588, but only when the correct Cu-Cr-Ni composition is present. Some suppliers may substitute Q355B, which does not provide the same weathering performance.
Does Q355GNH Steel Tube keep rusting over time?
No, the Q355GNH Weathering Steel Tube forms a stable patina after initial exposure. Once this protective layer is established, it slows down further corrosion and protects the internal structure instead of continuously degrading.
Does Q355GNH Steel Tube need painting or coating?
In most outdoor environments, Q355GNH Steel Tube does not require painting because the natural patina acts as protection. However, coatings may still be recommended in marine or high-humidity environments.
What is the difference between ERW and LSAW Q355GNH Steel Pipe?
ERW Q355GNH Steel Tube is suitable for smaller diameters and offers cost efficiency, while LSAW pipes are used for large-diameter and thick-wall applications where higher structural strength is required.
How long does Q355GNH Steel Tube last?
Under normal atmospheric conditions, Q355GNH Steel Tube can last 20–30 years without coating and even longer with proper design, making it far more durable than standard carbon steel pipes.
Is Q355GNH Steel Tube easy to weld?
Yes, Q355GNH Corten Steel Tube has good weldability, but proper welding procedures and materials should be used to ensure the weld area maintains similar strength and corrosion resistance.
What standards does Q355GNH Steel Tube follow?
Q355GNH Steel Tube complies with GB/T 4171 and GB/T 1591 standards and is often used as an equivalent to ASTM A588 in international projects.
How can I confirm I am buying real Q355GNH Steel Tube?
To ensure authenticity, you should request a Mill Test Certificate (MTC), verify the Cu, Cr, and Ni content, and confirm compliance with GB/T 4171, as these are key indicators of true weathering steel.
