When selecting weathering steel for structural applications, the difference between Q355GNH Steel Tube and Q355NH Steel Tube directly impacts service life, maintenance cost, and corrosion performance.
Q355GNH Steel Tube
While both belong to the GB/T 4171 weathering steel standard, Q355GNH Corten Steel Tube is classified as a high weathering grade, specifically engineered for harsher environments where standard NH steel may not be sufficient.
Core Difference between the Q355NH vs Q355GNH
Both materials are low-alloy atmospheric corrosion-resistant steels, but their performance levels differ significantly.
Q355NH Steel Tube
Standard weathering steel with basic Cu–Cr alloy system, suitable for general outdoor use.
Q355GNH Steel Tube
Enhanced Weathering Steel Tube with optimized P–Cr–Ni composition, designed to form a denser, more stable protective patina.
Chemical Composition Comparison: the Q355NH vs Q355GNH
The real upgrade from NH to GNH lies in precise chemical control, especially phosphorus and chromium.
Chemical Composition Comparison (%)
| Element | Q355NH | Q355GNH | Performance Impact |
|---|---|---|---|
| C | ≤0.16 | ≤0.12 | Lower carbon improves weldability |
| P | ≤0.030 | 0.070–0.150 | Key factor for dense protective patina |
| Cr | 0.40–0.80 | 0.50–1.25 | Enhances corrosion resistance |
| Ni | ≤0.65 | 0.12–0.65 | Improves toughness & stability |
| Cu | 0.25–0.55 | 0.25–0.55 | Form-based corrosion barrier |
Higher P + Cr content in Q355GNH Weathering Steel Tube = stronger, more stable anti-corrosion layer.
Mechanical Properties & Long-Term Performance of the Q355NH vs Q355GNH
Although both grades share similar strength levels, their long-term durability differs significantly.
Mechanical Performance Comparison
| Property | Q355NH | Q355GNH |
|---|---|---|
| Yield Strength | ≥355 MPa | ≥355 MPa |
| Tensile Strength | 490–630 MPa | 470–630 MPa |
| Elongation | ≥22% | ≥22% |
| Corrosion Resistance | 2–4× carbon steel | 5–8× carbon steel |
| Section Loss Over Time | Moderate | Minimal |
Q355GNH Steel Tube maintains structural thickness longer, reducing risk of long-term weakening.
Why Choose Q355GNH Welded Steel Pipes?
Lower Maintenance Cost
The dense patina formed by Q355GNH Corten Steel Tube allows use in bare steel condition, eliminating painting and re-coating cycles.
Better Performance in Harsh Environments
Compared to Q355NH, Q355GNH Steel Tube performs significantly better in:
- Coastal areas (salt spray)
- Industrial pollution zones
- High humidity environments
More Stable & Uniform Appearance
The surface evolves from orange to deep brown over time, forming a consistent architectural finish, unlike uneven rusting in lower-grade steels.
Environmentally Friendly
No paint = no VOC emissions
Lower lifecycle impact for large infrastructure projects
Application of the Q355NH vs Q355GNH
| Application | Recommended Grade |
|---|---|
| General structures (inland) | Q355NH |
| Painted steel structures | Q355NH |
| Bridges (coastal / exposed) | Q355GNH |
| Outdoor architecture | Q355GNH |
| Industrial zones | Q355GNH |
| Containers / transport | Q355GNH |
If environment is aggressive → choose Q355GNH Weathering Steel Tube
Why Choose Our Q355GNH Steel Tube for Sale?
Real Chemical Composition – No Substitution
If your project requires true weathering performance, composition matters more than price.
We guarantee authentic Q355GNH Steel Tube with full traceability.
High-Quality Welded Steel Pipes
Our Q355GNH welded steel pipes (ERW & LSAW) undergo:
- Seam heat treatment
- 100% ultrasonic testing
- Strict dimensional control
Ensuring weld strength matches base metal.
Flexible Custom Production
We provide:
- Custom diameter (219mm – 1420mm)
- Custom wall thickness
- Fixed-length production
- Helping reduce waste and improve installation efficiency.
If your project is exposed to harsh weather, pollution, or long-term outdoor conditions, choosing Q355NH to save initial cost often leads to higher maintenance expenses later.
If you need a material that delivers long-term durability, reduced maintenance, and stable performance, then Q355GNH Steel Tube is not an upgrade-it is the correct choice.
If you are looking for a reliable supplier who can provide verified materials, stable production, and engineering support, Gnee is ready to support your project from specification to delivery.
Contact us now for a technical consultation, MTC report, and fast quotation for Q355GNH steel tube.
Contact now to get GB/T4171 Q355GNH Straight Seam Welded Steel Pipe Quote
What is Q355GNH Steel Tube?
Q355GNH Steel Tube is a high-strength weathering steel tube designed for outdoor structural use. It contains copper, chromium, and nickel, which allow it to form a protective rust layer that significantly improves corrosion resistance compared to ordinary carbon steel.
Is Q355GNH the same as Corten Steel Tube?
Yes, Q355GNH Corten Steel Tube is widely considered equivalent to weathering steels like ASTM A588, but only when the correct Cu-Cr-Ni composition is present. Some suppliers may substitute Q355B, which does not provide the same weathering performance.
Does Q355GNH Steel Tube keep rusting over time?
No, the Q355GNH Weathering Steel Tube forms a stable patina after initial exposure. Once this protective layer is established, it slows down further corrosion and protects the internal structure instead of continuously degrading.
Does Q355GNH Steel Tube need painting or coating?
In most outdoor environments, Q355GNH Steel Tube does not require painting because the natural patina acts as protection. However, coatings may still be recommended in marine or high-humidity environments.
What is the difference between ERW and LSAW Q355GNH Steel Pipe?
ERW Q355GNH Steel Tube is suitable for smaller diameters and offers cost efficiency, while LSAW pipes are used for large-diameter and thick-wall applications where higher structural strength is required.
How long does Q355GNH Steel Tube last?
Under normal atmospheric conditions, Q355GNH Steel Tube can last 20–30 years without coating and even longer with proper design, making it far more durable than standard carbon steel pipes.
Is Q355GNH Steel Tube easy to weld?
Yes, Q355GNH Corten Steel Tube has good weldability, but proper welding procedures and materials should be used to ensure the weld area maintains similar strength and corrosion resistance.
What standards does Q355GNH Steel Tube follow?
Q355GNH Steel Tube complies with GB/T 4171 and GB/T 1591 standards and is often used as an equivalent to ASTM A588 in international projects.
How can I confirm I am buying real Q355GNH Steel Tube?

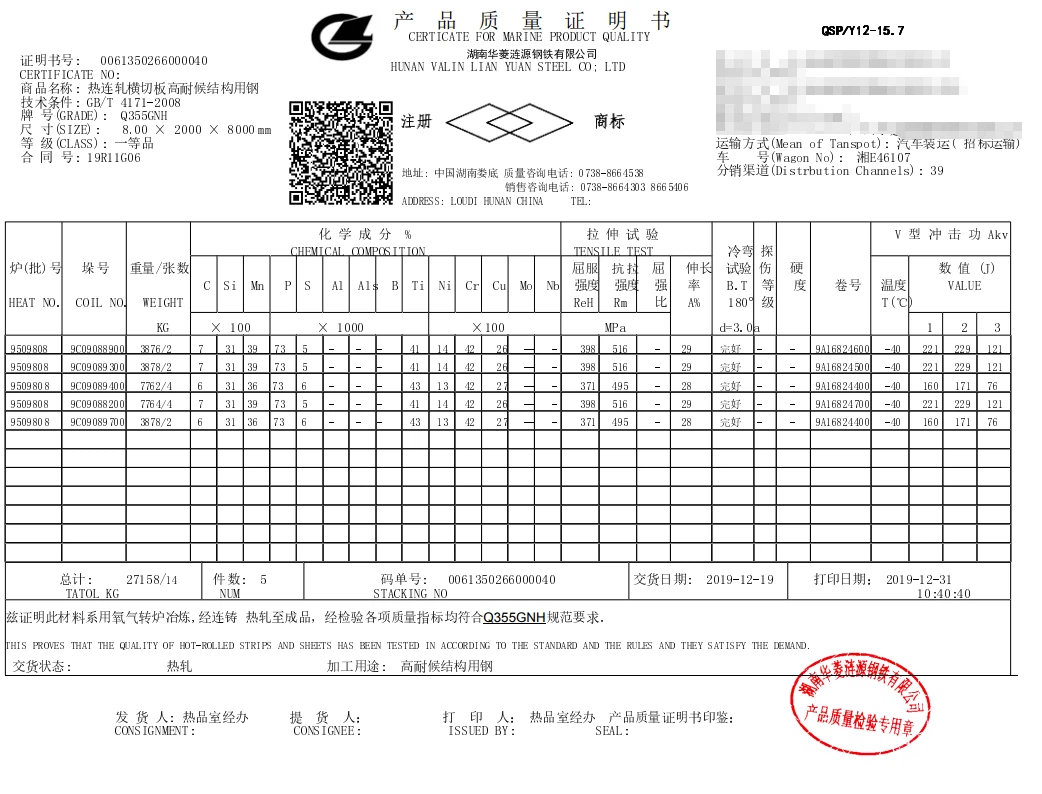

To ensure authenticity, you should request a Mill Test Certificate (MTC), verify the Cu, Cr, and Ni content, and confirm compliance with GB/T 4171, as these are key indicators of true weathering steel.
