Differences between S355J0W steel and S355J0WP steel

When selecting high-strength weathering steel plates, both S355J0W steel and S355J0WP steel are widely used under the EN 10025-5 standard.

These grades are often referred to as Corten-type steel, designed to form a protective oxide layer (patina) that prevents further corrosion.

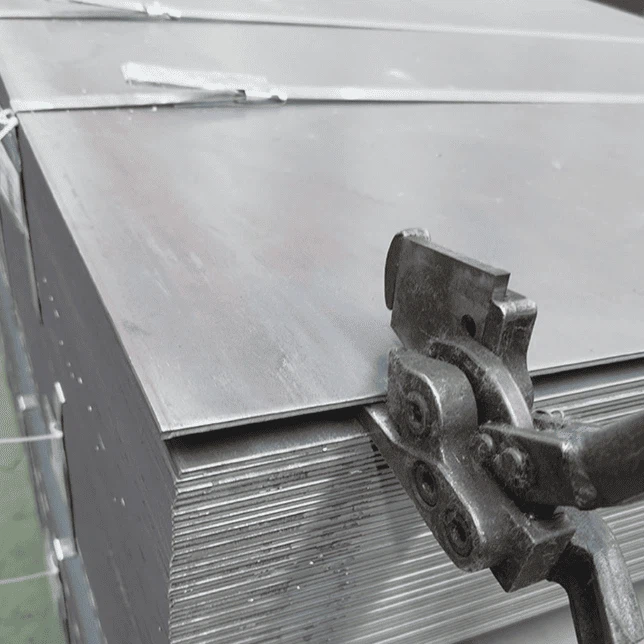

S355J0W steel

However, despite similar corrosion resistance, their chemical composition, weldability, and thickness capability differ significantly. Understanding these differences is essential for structural safety and long-term durability.

At Gnee Steel, we supply certified S355J0W steel plates and related weathering steel grades for global infrastructure, bridge, and architectural projects.

S355J0W Steel Plate (EN 10025-5)

Equivalent to Corten B-type Weathering Steel
S355J0W serves as the modern European metric equivalent to the classic Corten B. While it shares the same atmospheric corrosion resistance as Corten A, its chemical composition is specifically modified (lower Phosphorus, higher Manganese) to improve internal grain structure. This makes it the "industrial grade" of weathering steels, providing a reliable balance between chemistry and mechanical strength.

Designed for Thick Plate and Heavy Structural Applications
Unlike other weathering grades that lose integrity as they get thicker, S355J0W is metallurgically optimized for heavy gauges (often ranging from 12mm to over 200mm).

It maintains a consistent yield strength of 355 MPa even in massive sections. This is critical for civil engineering projects where the material must support high dead loads (the weight of the structure itself) and live loads (traffic or wind) over long spans.

Excellent Performance in Welded Structures and Load-Bearing Components
The primary advantage of S355J0W is its superior weldability. By keeping Phosphorus levels low, the steel avoids "hot cracking" during the welding process.

This allows engineers to use it for critical load-bearing joints, such as those found in bridge girders, railway wagons, and high-rise frameworks.

It is designed to handle "fatigue stress"-the repeated loading and unloading cycles typical of infrastructure-without developing structural micro-cracks.

S355J0WP Steel Plate (EN 10025-5)

Equivalent to Corten A-type Weathering Steel
S355J0WP is the direct European equivalent to Corten A, the original weathering steel. It is recognized worldwide as the gold standard for atmospheric resistance.

It is specifically chosen when the "longevity" of the surface and the "speed" of the patina formation are more important than the thickness of the steel plate.

Higher Phosphorus Content (The Protective Catalyst)
The defining characteristic of this grade is its significantly higher Phosphorus level (up to 0.15%). Metallurgically, Phosphorus reacts with Copper and Chromium to create a dense, "impenetrable" oxide layer (the patina) much faster than standard steel.

This layer acts as a subterranean shield, sealing the base metal against moisture and oxygen, effectively stopping the corrosion process in its tracks.

More Suitable for Thin Decorative Sheets and Façade Applications
Because S355J0WP forms such a tight and aesthetically pleasing rust layer, it is the preferred choice for thin-gauge materials (typically 1mm to 10mm). In architectural façades, it provides a uniform, deep-brown velvet texture.

It is also easier to laser-cut into intricate patterns for decorative screens, signage, and public art without warping or losing its protective qualities at the cut edges.

Limited Use in Heavy Welding Structures
While S355J0WP is highly resistant to rust, its high Phosphorus content makes it "hot short"-meaning it can become brittle at the high temperatures required for heavy-duty welding. If used in thick, multi-pass welded joints, there is a significantly higher risk of weld failure or cracking.

Therefore, it is generally restricted to decorative uses, light structural frames, or bolted assemblies rather than critical, high-stress welded infrastructure.

The main technical difference between S355J0W and S355J0WP steel plates lies in phosphorus (P), carbon (C), and silicon (Si), which directly affect weldability and thickness performance.

Higher P content in S355J0WP steel → better atmospheric rust appearance but weaker weldability

Lower P content in S355J0W steel → better structural safety and fabrication performance

If you need S355J0W quote, please contact us: corten@gneesteelgroup.com

✔ S355J0W Steel – Superior Weldability

The primary reason engineers specify S355J0W over the "P" grade is its optimized chemical metallurgy, specifically regarding Phosphorus levels.

The Metallurgy of Weldability: S355J0W contains significantly lower Phosphorus than S355J0WP. High Phosphorus can lead to "hot shortness," where the steel becomes brittle at high temperatures, causing micro-cracks in the weld pool. By keeping Phosphorus low, S355J0W ensures the Heat Affected Zone (HAZ) remains ductile and strong.

Ideal for Bridge Welding Structures: Large-scale bridges require massive, multi-pass welds. S355J0W allows for deep penetration welds that can withstand the thermal stresses of the welding process without compromising the base metal's integrity.

Railway Components & Heavy Fabrication: In the manufacturing of freight wagons and heavy industrial frames, welding is the primary joining method. S355J0W provides a reliable, crack-resistant surface that is compatible with standard high-strength welding consumables.

✔ S355J0W Steel – Thickness Flexibility

While S355J0WP is effectively limited to thin gauges (usually under 12mm) due to its chemistry, S355J0W is engineered to maintain its mechanical properties across a massive range of thicknesses.

Supports Ultra-Thick Plates (100mm+): Many high-load projects require plates exceeding 50mm, 80mm, or even 100mm in thickness. S355J0W is designed to remain "homogeneous"-meaning the strength at the core of the thick plate is nearly identical to the strength at the surface.

Suitable for Large-Scale Infrastructure: In projects like highway overpasses or maritime structures, thin sheets simply cannot provide the necessary moment of inertia or load-bearing capacity. S355J0W allows engineers to scale up the "mass" of the structure while retaining weathering protection.

High-Load Engineering Environments: From stadium roof trusses to heavy-duty industrial silos, the ability to use thick-section weathering steel allows for the construction of "self-protecting" structures that do not require the structural compromises associated with thinner, more brittle grades.

✔ S355J0W Steel – Structural Reliability

Structural reliability is not just about holding weight; it is about how the material behaves under stress, vibration, and temperature changes over decades.

Versatile Joining Methods: S355J0W is specifically designed to perform under a variety of assembly methods, including welding, high-tension bolting, and riveting. Its internal grain structure is resilient enough to handle the localized "clamping force" of bolts without developing stress-corrosion cracking.

High Fatigue Resistance Under Dynamic Loads: Unlike static buildings, structures like bridges and railway systems are subject to "dynamic loads"-constant vibration and weight shifts. S355J0W offers high fatigue strength, meaning it can endure millions of "stress cycles" without the metal becoming "tired" or prone to sudden failure.

Impact Toughness (J0 Rating): The "J0" in its name signifies that the steel has been tested to withstand a minimum impact energy of 27 Joules at 0°C.

This ensures that even in freezing winter conditions, the steel remains "tough" rather than "brittle," preventing catastrophic fractures under sudden impact or heavy loading.

If you need S355J0W quote, please contact us: corten@gneesteelgroup.com

At Gnee Steel, we provide full processing and supply solutions for S355J0W weathering steel plates.

✔ Certification & Quality Control (S355J0W Steel)

The primary reason engineers specify S355J0W over the "P" grade is its optimized chemical metallurgy, specifically regarding Phosphorus levels.

• The Metallurgy of Weldability: S355J0W contains significantly lower Phosphorus than S355J0WP. High Phosphorus can lead to "hot shortness," where the steel becomes brittle at high temperatures, causing micro-cracks in the weld pool. By keeping Phosphorus low, S355J0W ensures the Heat Affected Zone (HAZ) remains ductile and strong.

• Ideal for Bridge Welding Structures: Large-scale bridges require massive, multi-pass welds. S355J0W allows for deep penetration welds that can withstand the thermal stresses of the welding process without compromising the base metal's integrity.

• Railway Components & Heavy Fabrication: In the manufacturing of freight wagons and heavy industrial frames, welding is the primary joining method. S355J0W provides a reliable, crack-resistant surface that is compatible with standard high-strength welding consumables.

✔ S355J0W Steel Processing Services

While S355J0WP is effectively limited to thin gauges (usually under 12mm) due to its chemistry, S355J0W is engineered to maintain its mechanical properties across a massive range of thicknesses.

• Supports Ultra-Thick Plates (100mm+): Many high-load projects require plates exceeding 50mm, 80mm, or even 100mm in thickness. S355J0W is designed to remain "homogeneous"-meaning the strength at the core of the thick plate is nearly identical to the strength at the surface.

• Suitable for Large-Scale Infrastructure: In projects like highway overpasses or maritime structures, thin sheets simply cannot provide the necessary moment of inertia or load-bearing capacity. S355J0W allows engineers to scale up the "mass" of the structure while retaining weathering protection.

• High-Load Engineering Environments: From stadium roof trusses to heavy-duty industrial silos, the ability to use thick-section weathering steel allows for the construction of "self-protecting" structures that do not require the structural compromises associated with thinner, more brittle grades.

✔ S355J0W Steel Inventory & Logistics

Structural reliability is not just about holding weight; it is about how the material behaves under stress, vibration, and temperature changes over decades.

• Versatile Joining Methods: S355J0W is specifically designed to perform under a variety of assembly methods, including welding, high-tension bolting, and riveting. Its internal grain structure is resilient enough to handle the localized "clamping force" of bolts without developing stress-corrosion cracking.

• High Fatigue Resistance Under Dynamic Loads: Unlike static buildings, structures like bridges and railway systems are subject to "dynamic loads"-constant vibration and weight shifts. S355J0W offers high fatigue strength, meaning it can endure millions of "stress cycles" without the metal becoming "tired" or prone to sudden failure.

• Impact Toughness (J0 Rating): The "J0" in its name signifies that the steel has been tested to withstand a minimum impact energy of 27 Joules at 0°C. This ensures that even in freezing winter conditions, the steel remains "tough" rather than "brittle," preventing catastrophic fractures under sudden impact or heavy loading.

If you need S355J0W quote, please contact us: corten@gneesteelgroup.com

Using S355J0W steel significantly reduces long-term project cost:

• No painting required
• Low maintenance lifecycle cost
• Extended service life in outdoor environments
• Reduced corrosion protection expenses
• Total Cost of Ownership (TCO) is much lower compared to conventional carbon steel.

Transport: High-speed rail bogies, railway wagons, and shipping containers.

Infrastructure: Bridges, highway sound barriers, and transmission towers.

Architecture: External cladding, sculptures, and landscape features.

Industrial: Chimneys, heat exchangers, and storage tanks.

S355J0WP

S355J0W

If you are currently selecting between S355J0W steel plate and S355J0WP weathering steel, the real decision is not only about specification compliance, but about long-term structural risk.

Many projects underestimate the impact of incorrect grade selection, which later leads to welding issues, reduced fatigue performance, and unexpected maintenance costs.

Contact now to get S355J0W steel Quote

What is the American equivalent of S355J0?

ASTM A572 Grade 50: This is a common equivalent to S355J0 in terms of mechanical properties and usage in construction and structural applications. ASTM A36: While A36 has lower mechanical properties than S355J0, it can sometimes be used as an equivalent in less demanding applications.

What grade of steel is S355J0?

S355J0 is a non-alloy structural steel grade defined by the EN 10025-2 standard. The "S" denotes "structural," indicating its use in constructing buildings, machinery, or infrastructure.

Can S355 be hardened?

S355 is not ideally suited to hardening, though it can be subjected to limited heat treatment process such as case hardening. When hardening S355 heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each component.

Can S355 be welded?

S355 structural steel, widely used in offshore, shipbuild- ing, and construction industries, is known for its excellent weld- ability and durability [1], as well as for its corrosion and fatigue characteristics.
