When selecting atmospheric corrosion-resistant steel plates, understanding the differences between S355J0W, S355J2W, and S355K2W weathering steel is essential for both structural safety and cost efficiency.
All three grades belong to EN 10025-5 weathering steel standard, designed with alloying elements such as Copper (Cu), Chromium (Cr), Nickel (Ni), and Phosphorus (P).
S355J0W
These elements allow the steel to naturally form a protective oxide layer (patina), eliminating the need for painting and significantly reducing maintenance costs.
At Gnee Steel, we supply full ranges of S355J0W steel plate, S355J2W steel plate, and S355K2W steel plate with mill-certified quality and global export support.
Key Technical Comparison of S355J0W, S355J2W, and S355K2W
The main difference between these grades lies in impact energy at different temperatures, which directly affects performance in cold environments.
| Grade | Impact Test Temperature | Min. Impact Energy | Delivery Condition |
|---|---|---|---|
| S355J0W steel | 0°C | 27J | +AR / +N |
| S355J2W steel | -20°C | 27J | +AR / +N |
| S355K2W steel | -40°C | 40J | +AR / +N |
Corrosion resistance level is similar; toughness is the key differentiator.
If you need S355J0W, please contact us: corten@gneesteelgroup.com
Chemical Composition and Mechanical Properties of S355J0W, S355J2W, S355K2W
Chemical Composition (Max %)
| Element | S355J0W | S355J2W | S355K2W |
|---|---|---|---|
| C | ≤0.19 | ≤0.19 | ≤0.19 |
| Mn | 0.45–1.60 | 0.45–1.60 | 0.45–1.60 |
| P | ≤0.040 | ≤0.040 | ≤0.040 |
| S | ≤0.040 | ≤0.040 | ≤0.040 |
| Cu | 0.20–0.60 | 0.20–0.60 | 0.20–0.60 |
| Cr | 0.35–0.85 | 0.35–0.85 | 0.35–0.85 |
Mechanical Properties
| Grade | Yield Strength | Tensile Strength |
|---|---|---|
| S355J0W | ≥355 MPa | 470–630 MPa |
| S355J2W | ≥355 MPa | 470–630 MPa |
| S355K2W | ≥355 MPa |
470–630 MPa |
S355J0W weathering steel plate develops a dense protective oxide layer over time:
Formation Process:
0–3 months: initial oxidation (light rust)
3–12 months: stabilization phase
1–3 years: stable protective patina
Processing Performance of S355J0W, S355J2W, and S355K2W
| Process | Technical Capability | Professional Requirement |
| Welding | Excellent: High joint efficiency across all grades. | Use matching alloy filler for patina consistency. |
| Cutting | Precise: Low distortion and clean heat-affected zones. | Laser for thin decorative; Plasma/Flame for heavy structural. |
| Forming | Reliable: High ductility allows for complex geometries. | Account for higher springback than standard S235 steel. |
| Finishing | Optimal: Ideal for sandblasting to accelerate patina. | Sa 2.5 blasting is recommended for a uniform rust look. |
If you need S355J0W, please contact us: corten@gneesteelgroup.com

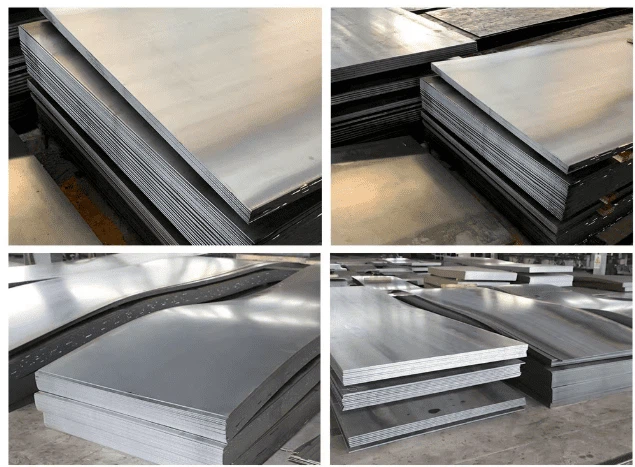

Dimensions of S355J0W, S355J2W, and S355K2W
All Gnee Steel S355J0W steel plates follow EN standards:
Thickness: 2–150 mm
Width: 1000–3500 mm
Length: up to 12 meters or cut-to-length
Tolerance: EN 10029 standard
Surface condition:
Free of cracks, laminations, defects
Mill edge or trimmed edge available
Application of S355J0W, S355J2W, and S355K2W
1. Advanced Bridge Engineering Structures
Weathering steel is the global industry standard for long-span bridges and highway overpasses. Using S355J2W or S355K2W allows engineers to build massive girders and support trusses that require no painting over their 100-year design life.
The high yield strength enables slimmer, more efficient designs, while the "K2" toughness ensures the bridge remains safe against brittle fracture during extreme winter temperatures or under the high-frequency vibrations caused by heavy traffic.
By eliminating the need for periodic repainting, these steels prevent costly traffic disruptions and environmental contamination from paint chips.
2. Railway Wagons and Intermodal Freight Containers
In the transportation sector, S355J0W and J2W are prized for their high strength-to-weight ratio and durability.
Railway Wagons: Freight cars made from S355J0W weathering steel can carry heavier payloads because the structural components are thinner yet stronger than standard carbon steel.
Containers: For intermodal containers exposed to salt air and high humidity during maritime transit, the protective patina acts as a permanent shield, significantly extending the service life of the fleet and reducing the "total cost of ownership" for logistics companies.
3. Modern Architectural Façade Systems
Architects specify S355J0W corten steel plate to create "living" building envelopes. Unlike static, painted surfaces, a weathering steel façade evolves over time, transitioning from a warm orange to a deep, textured chocolate brown.
Beyond aesthetics, these systems provide excellent thermal stability and fire resistance. The self-healing nature of the patina ensures that even if a panel is scratched in a high-traffic urban area, it will naturally regenerate its protective layer, maintaining the building's visual and structural integrity for decades.
4. Landscape Design and Iconic Urban Sculpture
The organic, earthy tones of S355 weathering steel make it the premier choice for integrating man-made structures into natural environments. It is widely used for heavy-duty retaining walls, raised planters, and public art installations.
Because the material requires no chemical treatments or toxic anti-rust coatings, it is environmentally safe for use in parks and water-adjacent projects.
Its ability to be laser-cut and cold-formed allows artists to create intricate, permanent monuments that withstand the elements without losing their artistic detail.
5. Offshore Platforms and Industrial Infrastructure
In harsh industrial zones and offshore environments, standard steel is prone to rapid degradation. S355K2W weathering steel plate is specifically utilized in these sectors due to its superior impact resistance at -40°C.
It is found in the construction of oil and gas platform components, industrial chimneys (stacks), and storage silos. These structures are often located in high-humidity or chemically aggressive atmospheres where maintenance is dangerous and expensive.
Weathering steel's ability to resist "pitting" and deep-seated corrosion makes it a critical safety material in these high-stakes environments.
6. Highway Noise Barriers and Safety Fencing
For large-scale public infrastructure like highway noise barriers and safety railings, S355J0W offers an eco-friendly and cost-effective solution. Traditional galvanized or painted barriers eventually peel and require replacement.
Weathering steel barriers, however, blend seamlessly into the roadside terrain and remain maintenance-free for their entire lifespan. They do not leach harmful chemicals into the soil, making them the preferred choice for "Green Infrastructure" projects aimed at reducing the carbon footprint of national highway systems.
S355J0W steel plate remains the most widely used grade in EN 10025-5 weathering steel due to its excellent balance of strength, corrosion resistance, and cost efficiency. Compared with S355J2W and S355K2W, it offers the most versatile performance for general engineering and architectural applications.
At Gnee Steel, we supply a full range of weathering steel plates (S355J0W, S355J2W, S355K2W) with certified quality, fast delivery, and global export support.
Contact Gnee Steel for a real-time stock list, technical support, and competitive pricing.
Contact now to get S355J0W steel plate Quote
What is the American equivalent of S355J0?
ASTM A572 Grade 50: This is a common equivalent to S355J0 in terms of mechanical properties and usage in construction and structural applications. ASTM A36: While A36 has lower mechanical properties than S355J0, it can sometimes be used as an equivalent in less demanding applications.
What grade of steel is S355J0?
S355J0 is a non-alloy structural steel grade defined by the EN 10025-2 standard. The "S" denotes "structural," indicating its use in constructing buildings, machinery, or infrastructure.
Can S355 be hardened?
S355 is not ideally suited to hardening, though it can be subjected to limited heat treatment process such as case hardening. When hardening S355 heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each component.
Can S355 be welded?
S355 structural steel, widely used in offshore, shipbuild- ing, and construction industries, is known for its excellent weld- ability and durability [1], as well as for its corrosion and fatigue characteristics.
