Corten steel wall panels are widely used in architectural and urban projects due to their distinctive reddish-brown appearance and durable outdoor performance.
The characteristic rust-like layer, also known as a patina, not only serves a decorative purpose but also provides chemical protection, preventing deeper corrosion of the steel.
Contact now to get a corten steel facade panel quote
Why Choose Corten Steel Cladding?
The atmospheric corrosion resistance of weathering steel (commonly SPA-H or Corten-A) is 4 to 8 times higher than that of ordinary carbon steel.
Under standard environmental conditions, its annual average corrosion rate can decrease to between 0.001 and 0.005 mm/year after reaching a stable stage.
This ensures that Corten steel retaining walls can easily achieve a service life of 50 to 80 years without any coatings.
From the perspective of surface evolution, the formation of the passivation layer on a Corten retaining wall is a precise chemical process.
During the first 1 to 2 years after installation, the wall undergoes an active rusting phase, with relatively significant surface exfoliation. After 3 to 5 years, the FeOOH protective layer on the surface becomes dense, stabilizing at a thickness of approximately 50 to 100 micrometers. At this stage, streaking rust largely ceases, and the color enters a stable phase.
In terms of life cycle cost (LCC), although the raw material cost of a weathering steel retaining wall is about 20% to 30% higher than that of ordinary carbon steel, it eliminates the need for an initial fluorocarbon or anti-corrosion coating, which costs approximately 50 to 80 RMB per square meter.
Additionally, it removes the cost of repainting and maintenance required every 10 to 15 years over the building's lifetime. Comprehensive calculations indicate that for buildings used for more than 15 years, the actual total cost of Corten wall cladding can be more than 20% lower than that of conventional coated steel panels.
Types of Corten Metal Wall Panels
We possess leading capabilities in implementing Corten cladding panel projects and have extensive design and construction experience in the following three core exterior wall project areas:
1. Modern Industrial Style and Large-Span Weathering Steel Wall Projects (Corrugated/Profiling Systems)
For large-scale industrial plant renovations and modern commercial envelopes, we often use corrugated or profiled weathering steel panels. We employ high-quality weathering steel coils with thicknesses ranging from 0.8 mm to 1.5 mm, processed into corrugated or trapezoidal shapes through continuous roll-forming technology.
Technical Advantages: By utilizing the peaks and valleys of the cross-section, we significantly increase the moment of inertia (stiffness) of the thin sheets. This allows 1.0 mm thick weathering steel panels to span 1.5 m to 2.5 m between structural purlins without bending or deformation, greatly reducing the weight of the wall system and cutting steel material costs.

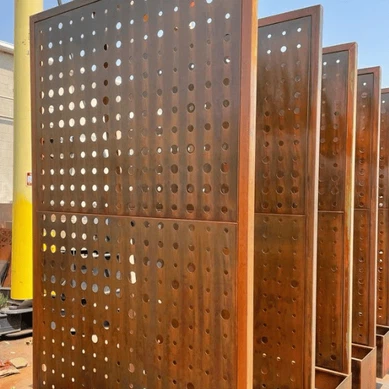

2. Light, Shadow, and Artistic Sunshade Wall Projects (Perforated/Decorative Systems)
For residential renovations and art center facades, we often use perforated weathering steel panels. Using high-precision CNC punching or industrial laser cutting, we create customized patterns directly on the steel panels.
Precision Parameters: We maintain the perforation rate within the optimal range of 20% to 60%. This ensures that the panels retain sufficient structural strength to withstand wind loads (avoiding strength degradation if perforation exceeds 60%) while achieving dynamic light and shadow effects during the day and subtle interior-exterior translucency at night.
3. Linear and Three-Dimensional Weathering Steel Grills and Exterior Sunshade Projects (Louver Systems)
Our projects'exterior window sunshades and ventilation openings use this fabrication technique. Weathering steel is precisely bent into rectangular tubes or streamlined fins with dimensions such as 50×100 mm or 100×200 mm.
Safety Assurance: Given the high density of weathering steel (7.85 t/m³), our engineering team carefully performs shear force calculations and designs lightning-conducting nodes for the connections at both ends of each louver. This ensures zero risk of falling objects from height, fully meeting permanent building safety requirements.
Whether you are constructing a stylish residence or designing a commercial building, all types of Corten steel cladding can bring lasting beauty and strength to your project.
Choosing the right exterior wall panels, standard, corrugated, or composite, helps overcome common challenges such as weather resistance, appearance, and structural load limits.
Gnee provides factory pricing, expert support, and fully customized solutions for a wide range of Corten steel and metal cladding.
Contact now to get a corten steel facade panels Quote
How long will corten steel last outside?
Generally, Corten steel will patina or rust within six months of atmospheric exposure. Most weathering steel types need wet/dry weather cycles to develop and oxidize. With the protective rust that provides corrosion resistance, Corten steel can last upwards of a few decades to over 100 years.
What is special about corten steel?
Corten Steel encompasses a group of steels which possess exceptional corrosion resistance and tensile strength. Corten Steel is also known as a 'weathering' steel; as the steel forms a protective layer on its surface under the influence of the weather, and it does not need to be painted.
What does corten steel look like before it rusts?
While many select corten, or weathering steel, because of its practical benefits, others select the steel for the appearance of its rusty, orange-brown patina. However, weathering steel is silver in its original state – just like standard steel. The patina develops over time when exposed to weather.
What is a cheap alternative to corten steel?
Weathering steel possesses the same great properties as Corten steel, but as it doesn't carry the brand name, it costs less. Just like Corten, weathering steel starts out blue-grey in colour and weathers to a rust-coloured finish. The orange patina protects the metal from corrosion and takes 6-9 months to develop.
Does corten steel need to be sealed?
No, Corten steel is designed to naturally form a stable, protective rust layer over time. In standard outdoor settings, this eliminates the need for painting or sealing. However, in aggressive environments, adding a barrier coating can help preserve its structure and appearance.
